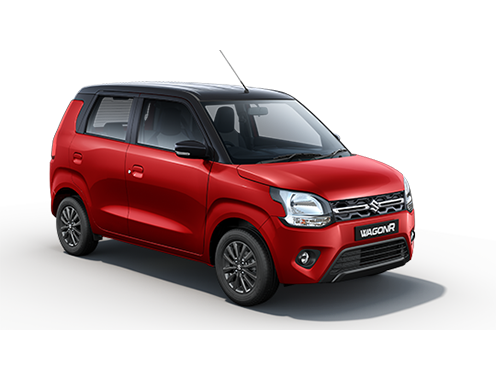

WagonR

Ex-showroom Price

498900 – 694900

Mileage

Petrol MT (1.0L) – 21.79 km/l*
Petrol AGS (1.0L) – 21.79km/l*
Petrol AGS (1.2L) – 20.52km/l*
CNG (1.0L) – 32.52km/kg*

*As certified by Test Agency Under Rule 115 (G) of CMVR 1989

SPECIFICATIONS

Technical Specifications

Features List

INTERIORS

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI CNG 1.2L	ZXI 1.2L	ZXI AGS 1.2L	ZXI+ 1.2L	ZXI+ AGS 1.2L
Dual Tone Interiors
2nd Row 60:40 Split Seat	–	–
Front Cabin Lamps (3 Positions)
Day/Night IRVM	–	–
Tilt Steering	–	–
Steering Wheel Garnish	–	–
Silver Inside Door Handles	–	–
Driver Side Sunvisor with Ticker Holder
Front Passenger Side Vanity Mirror Sunvisor	–	–

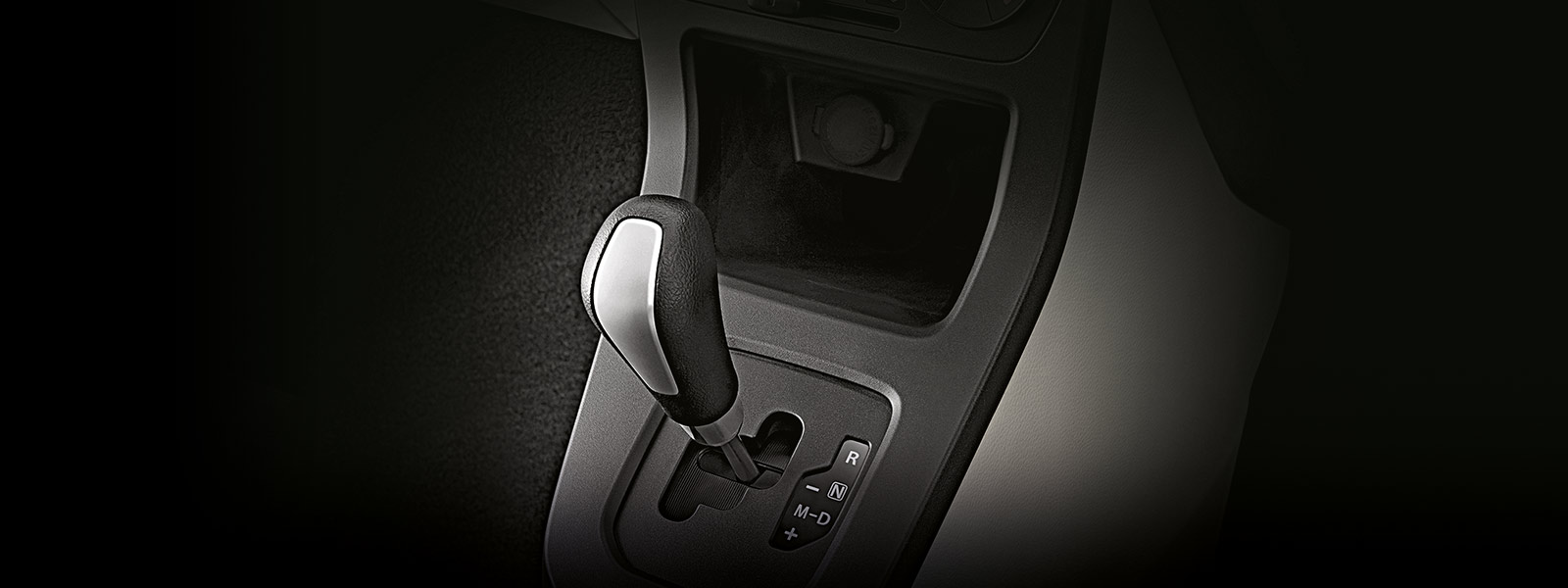

Silver Finish Gear Shift Knob (AGS only)	–	–

INSTRUMENT CLUSTER

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI CNG 1.2L	ZXI 1.2L	ZXI AGS 1.2L	ZXI+ 1.2L	ZXI+ AGS 1.2L
Instrument Cluster Meter Theme	Reddish Amber	Reddish Amber	Reddish Amber	Reddish Amber	Reddish Amber	Reddish Amber	Reddish Amber	White	White
Low Fuel Warning
Tachometer	–	–	–	–	–	–
Gear Shift Indicator (MT Only)
Gear Position Indicator (AGS Only)	–	–
Fuel Consumption (Instantaneous and Average)
Distance to empty
Headlamp On Warning
Door Ajar Warning Lamp

COMFORT AND CONVENIENCE

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI CNG 1.2L	ZXI 1.2L	ZXI AGS 1.2L	ZXI+ 1.2L	ZXI+ AGS 1.2L
Idle Start Stop(ISS)
Rear Defogger	–	–	–	–	–	–	–
Remote Keyless Entry	–	–
Accessory Socket Front Row with Storage Space
Power Windows (Fr/Rr) with Dr. Slide Auto Down Function	Only Front	Only Front
AC and Heater
1 L Bottle Holders (All four doors + Floor console)
Rear Parcel Tray	–
Co. Driver Side Front Seat Under Tray and Rear Back Pocket	–	–	–	–	–	–	–
Reclining and Front Sliding Seats

INFOTAINMENT SYSTEM

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI CNG 1.2L	ZXI 1.2L	ZXI AGS 1.2L	ZXI+ 1.2L	ZXI+ AGS 1.2L

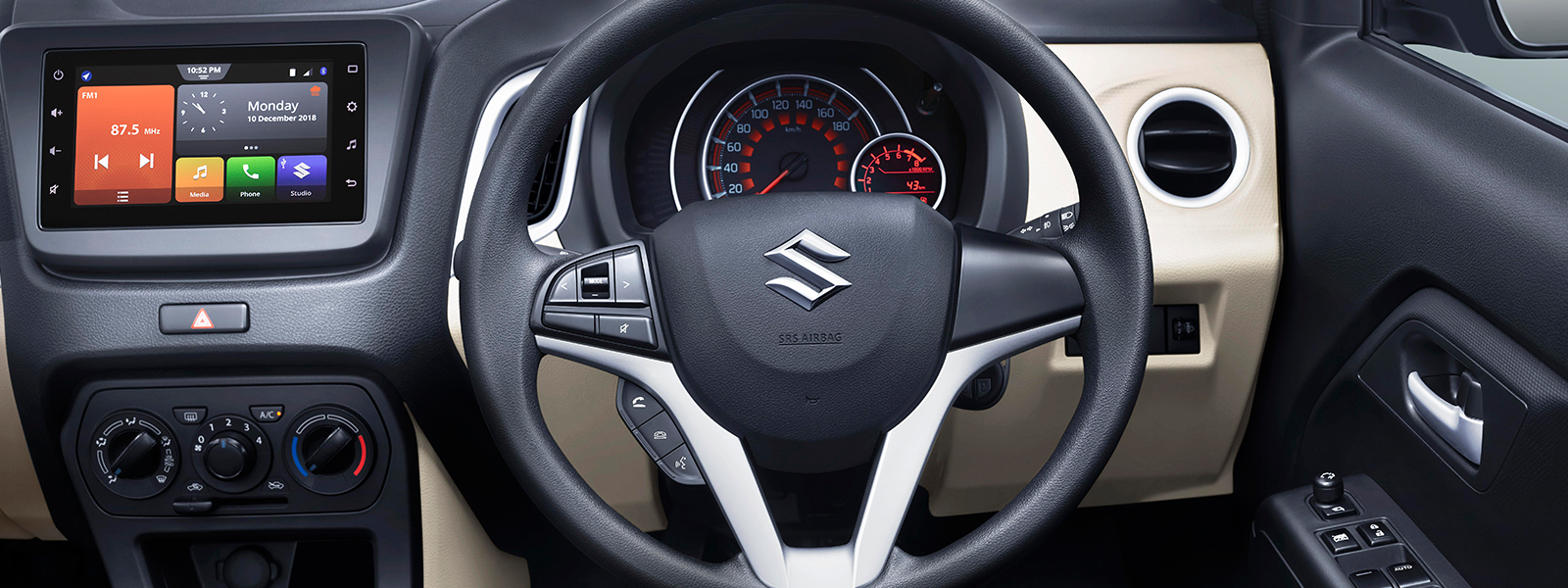

17.78 cm Smartplay Studio with Smartphone Navigation	–	–	–	–	–	–	–
Smartplay Dock	–	–						–	–
Apple CarPlay and Android Auto	–	–	–	–	–	–	–
Bluetooth	–	–
Speakers	–	–	2	2	2	2	2	4	4
USB Connectivity/AUX	–	–
Steering Mounted Audio Control	–	–	–	–	–
Steering Mounted Voice Control	–	–	–	–	–

SAFETY AND SECURITY

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI CNG 1.2L	ZXI 1.2L	ZXI AGS 1.2L	ZXI+ 1.2L	ZXI+ AGS 1.2L
Driver Airbag
Passenger Airbag
ABS with EBD
Seat Belt Pre-Tensioner and Force Limiters (Dr.+Co-Dr.)
Seat Belt Reminder with Buzzer (Dr.+Co-Dr.)
Speed Alert System
Speed Sensitive Auto Door Lock	–	–
Security Alarm	–	–
Rear Parking Sensors
Central Locking
Child Proof Rear Door Lock
Front Fog Lamps	–	–	–	–	–	–	–
Hill Hold Assistt	–	–	–		–	–		–

EXTERIOR

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI CNG 1.2L	ZXI 1.2L	ZXI AGS 1.2L	ZXI+ 1.2L	ZXI+ AGS 1.2L
Roof Antenna

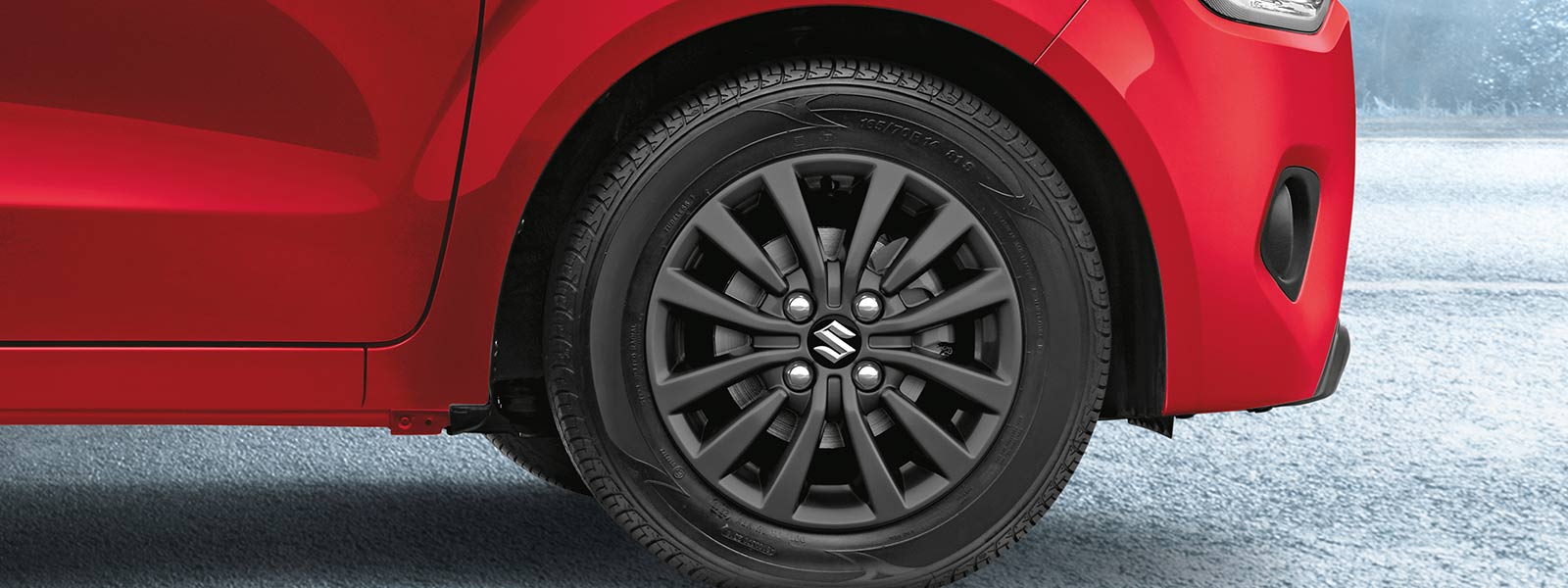

Full Wheel Cover	–	–						–	–

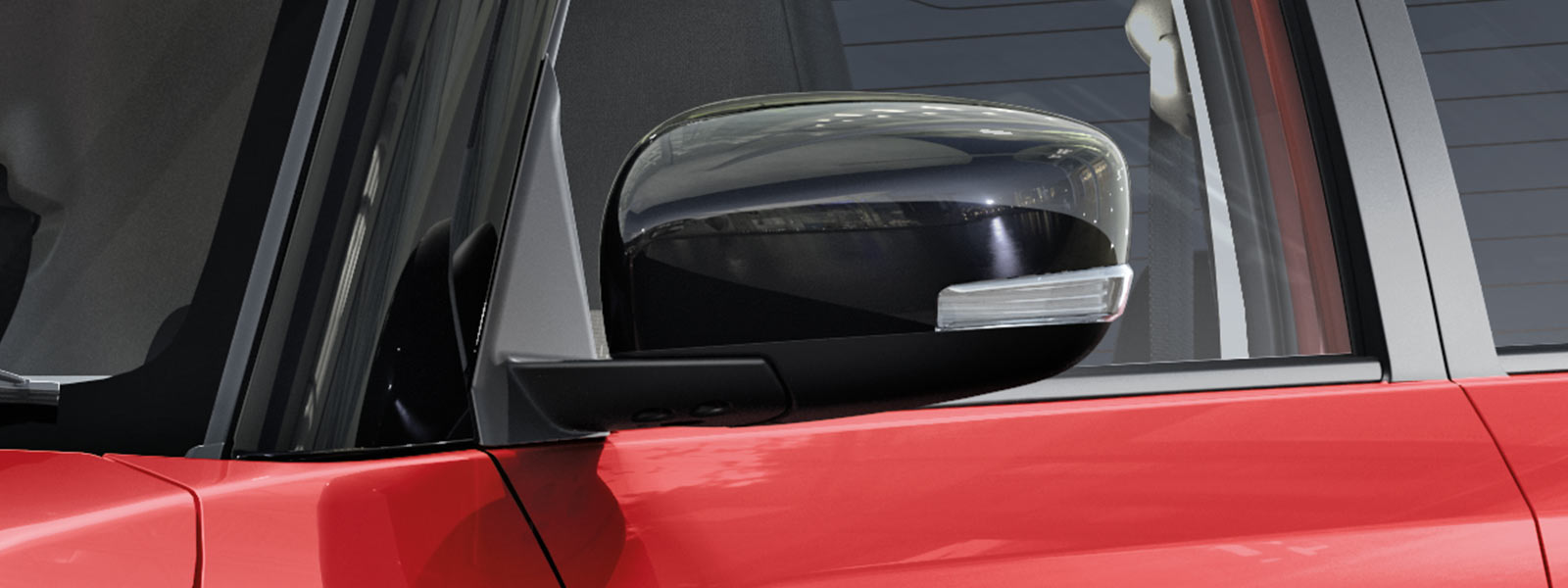

ORVM with Turn Indicators	–	–	–	–	–	–	–
Electrical Adjustable ORVM	–	–
Electrical Retractable ORVM	–	–	–	–	–	–	–
Rear Wiper and Washer	–	–	–	–	–	–	–
B-Pillar Black Out Tape	–	–	–	–	–
Body Coloured Door Handles	–	–
Body Coloured Bumpers
Body Coloured ORVMs	–	–						(Black In Dual tone)	(Black in Dual Tone)

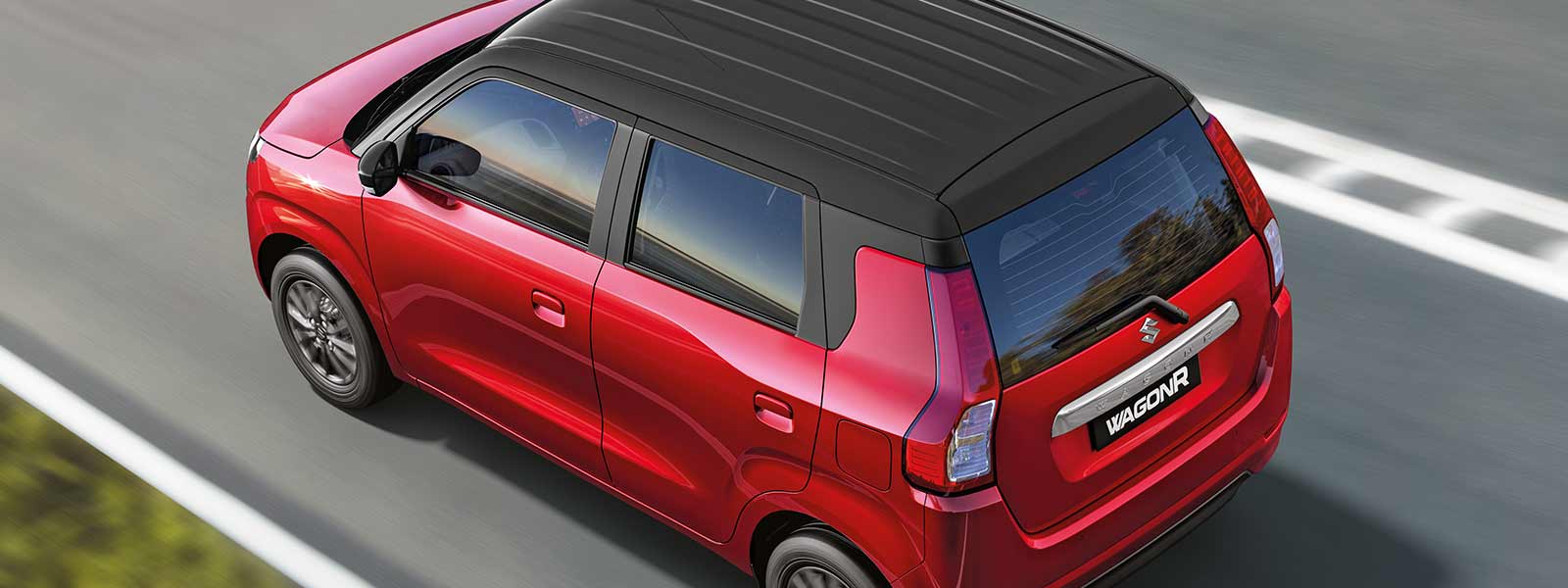

Dual Tone Exteriors	–	–	–	–	–	–	–	(Optional)	(Optional)

Technical Specifications

DIMENSIONS

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI 1.2L	VXI AGS 1.2L	ZXI 1.2L	ZXI AGS 1.2L
Length (mm)	3655	3655	3655	3655	3655	3655	3655	3655
Width (mm)	1620	1620	1620	1620	1620	1620	1620	1620
Height (mm)	1675	1675	1675	1675	1675	1675	1675	1675
Wheelbase (mm)	2435	2435	2435	2435	2435	2435	2435	2435
Turning Radius (m)	4.7	4.7	4.7	4.7	4.7	4.7	4.7	4.7

ENGINE

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI 1.2L	VXI AGS 1.2L	ZXI 1.2L	ZXI AGS 1.2L
Type	K10B	K10B	K10B	K10B	K12M	K12M	K12M	K12M
Capacity (cc)	998	998	998	998	1197	1197	1197	1197
Number of Cylinders	3	3	3	3	4	4	4	4
Maximium Engine Output (kW @ rpm)	50 kw @ 5500 rpm	43.5 kw @ 5500 rpm	50 kw @ 5500 rpm	50 kw @ 5500 rpm	61 kW @ 6000 rpm	61 kW @ 6000 rpm	61 kW @ 6000 rpm	61 kW @ 6000 rpm
Maximum Torque (Nm @ rpm)	90 Nm @ 3500 rpm	78 Nm @ 3500 rpm	90 Nm @ 3500 rpm	90 Nm @ 3500 rpm	113 Nm @ 4200 rpm	113 Nm @ 4200 rpm	113 Nm @ 4200 rpm	113 Nm @ 4200 rpm
Emission	BS VI + OBD-II	BS VI + OBD-II	BS VI + OBD-II	BS VI + OBD-II	BS VI + OBD-II	BS VI + OBD-II	BS VI + OBD-II	BS VI + OBD-II

SUSPENSION

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI 1.2L	VXI AGS 1.2L	ZXI 1.2L	ZXI AGS 1.2L
Front	MacPherson Strut with Coil Spring	MacPherson Strut with Coil Spring	MacPherson Strut with Coil Spring	MacPherson Strut with Coil Spring	MacPherson Strut with Coil Spring	MacPherson Strut with Coil Spring	MacPherson Strut with Coil Spring	MacPherson Strut with Coil Spring
Rear	Torsion Beam with Coil Spring	Torsion Beam with Coil Spring	Torsion Beam with Coil Spring	Torsion Beam with Coil Spring	Torsion Beam with Coil Spring	Torsion Beam with Coil Spring	Torsion Beam with Coil Spring	Torsion Beam with Coil Spring

CAPACITIES

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI 1.2L	VXI AGS 1.2L	ZXI 1.2L	ZXI AGS 1.2L
Seating Capacity	5	5	5	5	5	5	5	5
Fuel Tank Capacity – Petrol (L)	32	32	32	32	32	32	32	32
Fuel Tank Capacity – CNG Cylinder Water Filling Capacity (L)	–	60	–	–	–	–	–	–

WHEELS AND TYRES

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI 1.2L	VXI AGS 1.2L	ZXI 1.2L	ZXI AGS 1.2L
Size	155/80R13	155/80R13	155/80R13	165/70R14	165/70R14	165/70R14	165/70R14	165/70R14
Type	Radial and Tubeless	Radial and Tubeless	Radial and Tubeless	Radial and Tubeless	Radial and Tubeless	Radial and Tubeless	Radial and Tubeless	Radial and Tubeless

BRAKES

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI 1.2L	VXI AGS 1.2L	ZXI 1.2L	ZXI AGS 1.2L
Front	Disc	Disc	Disc	Disc	Disc	Disc	Disc	Disc
Rear	Drum	Drum	Drum	Drum	Drum	Drum	Drum	Drum

WEIGHT

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI 1.2L	VXI AGS 1.2L	ZXI 1.2L	ZXI AGS 1.2L
Gross Vehicle Weight (kg)	1340	1340	1340	1340	1340	1340	1340	1340
Kerb Weight (kg)	805	905	820	825	830	840	835	845

[/vc_column_text][/vc_tta_section]

TRANSMISSION

LXI 1.0L	LXI CNG 1.0L	VXI 1.0L	VXI AGS 1.0L	VXI 1.2L	VXI AGS 1.2L	ZXI 1.2L	ZXI AGS 1.2L
Transmission	MT	MT	MT	AGS	MT	AGS	MT	AGS

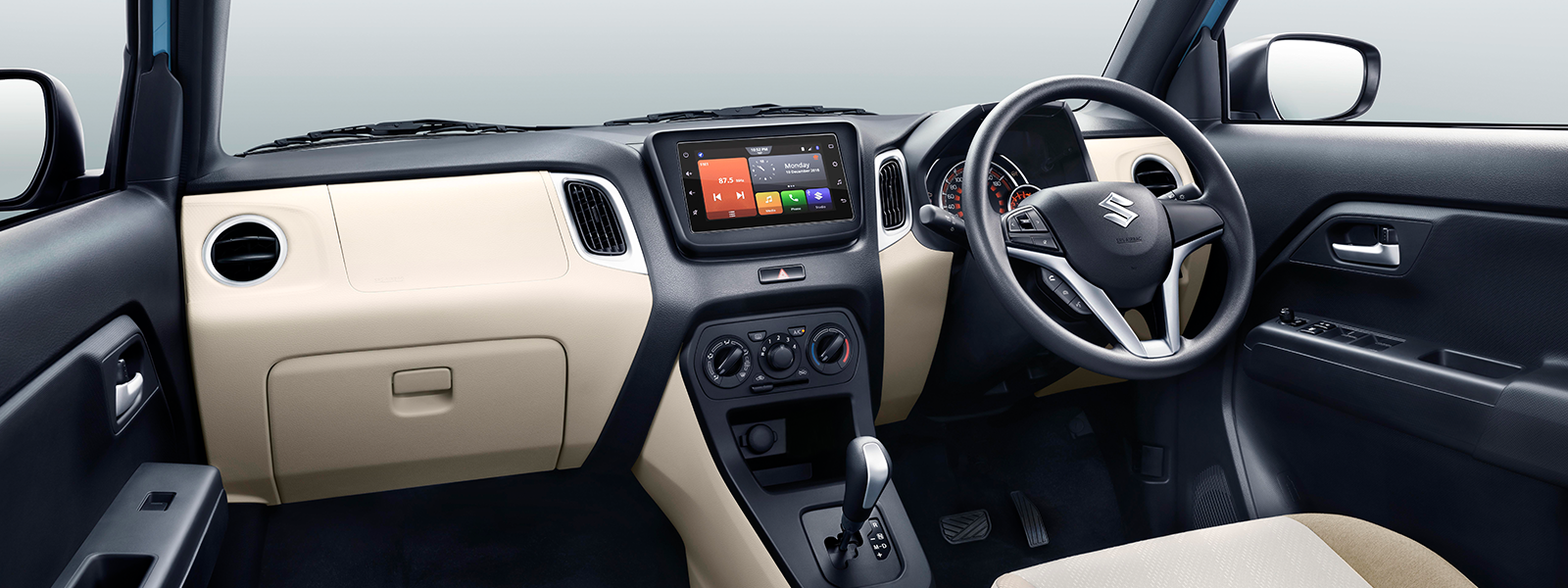

INTERIOR VIEW

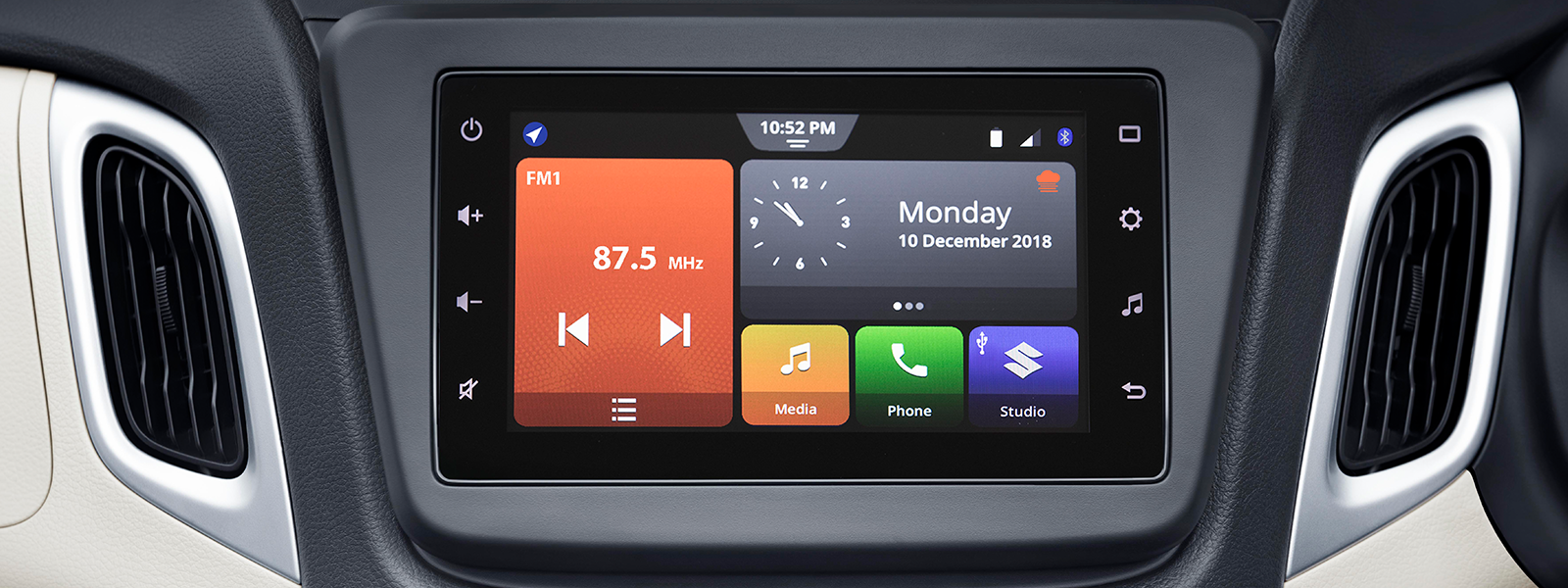

1600x600_04

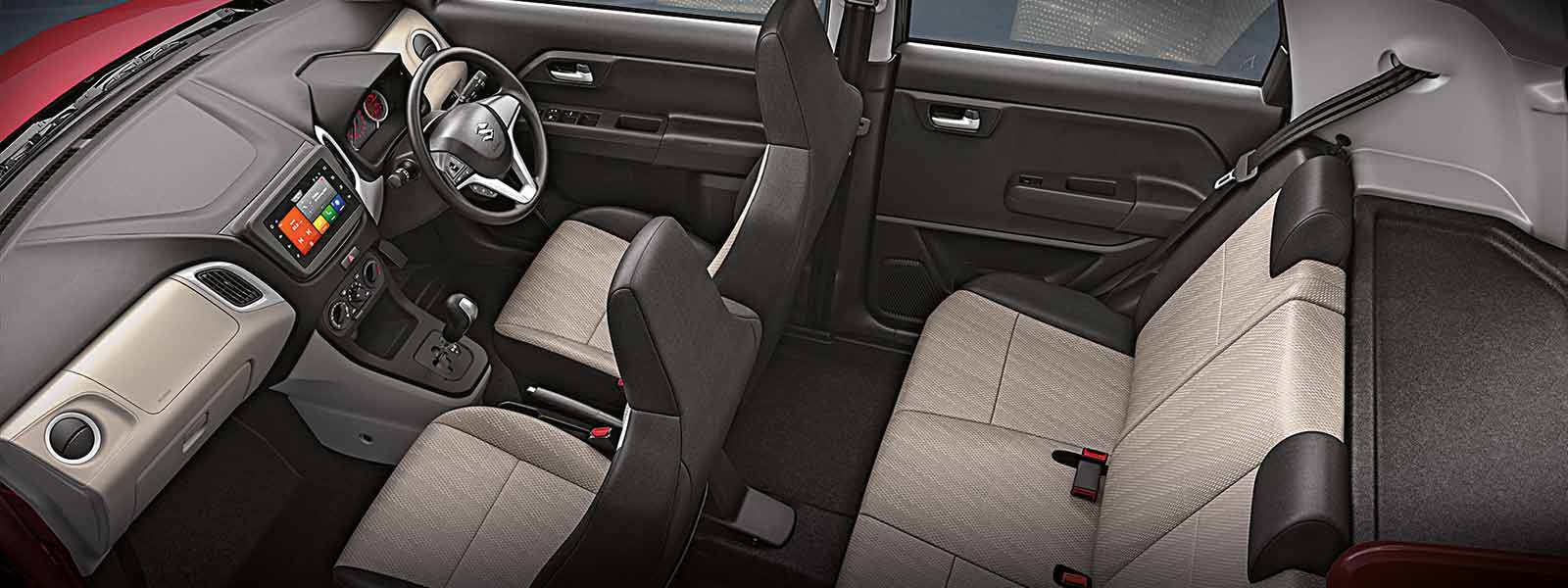

Seat Fabric

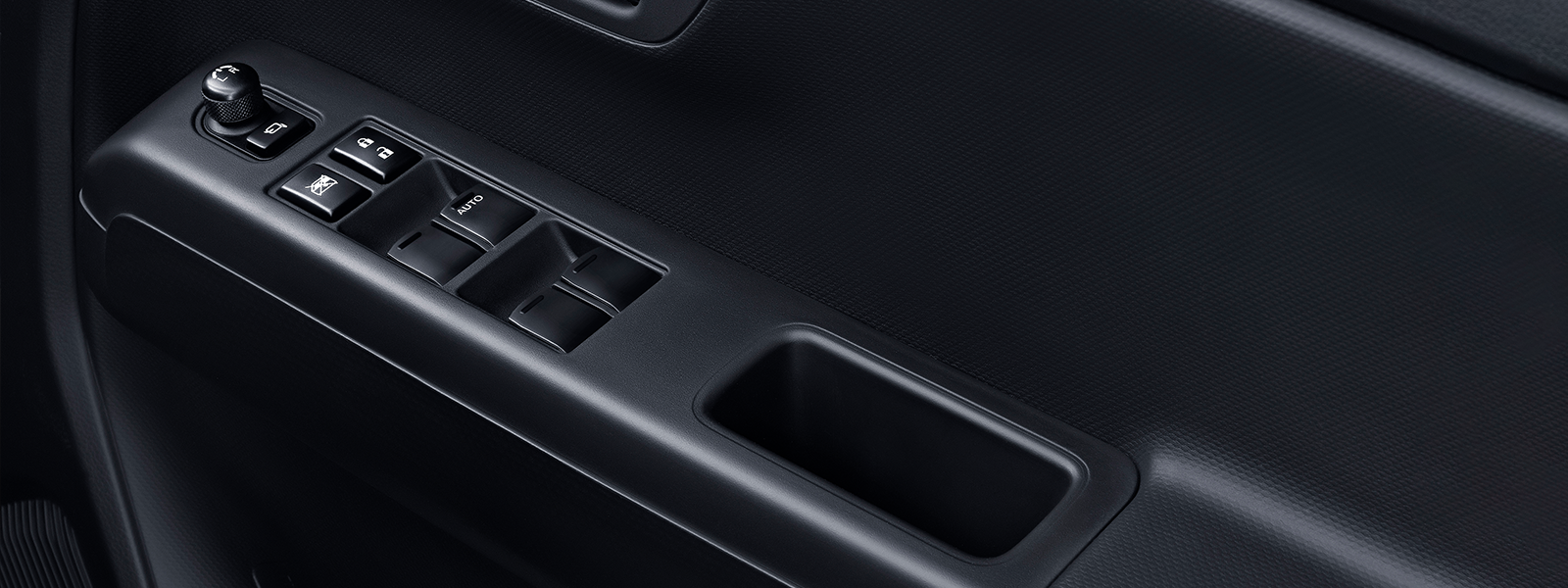

7 (1)

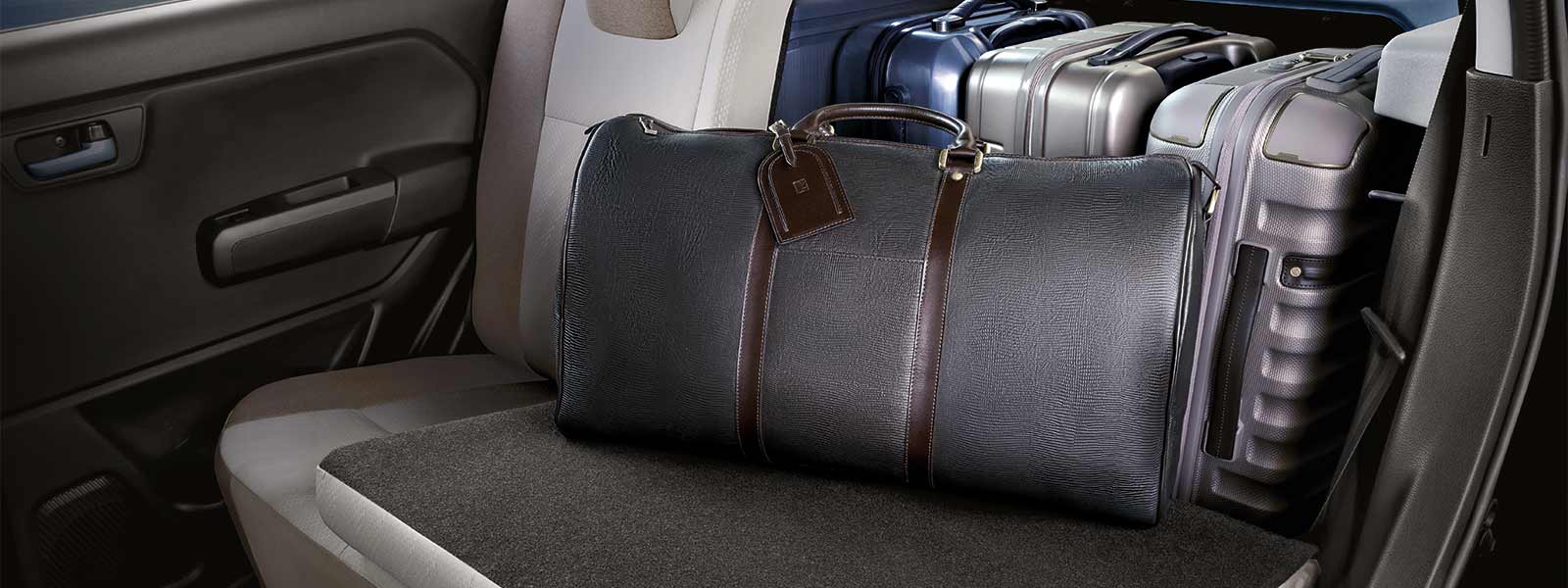

60-40 Split seat

1600x600_03

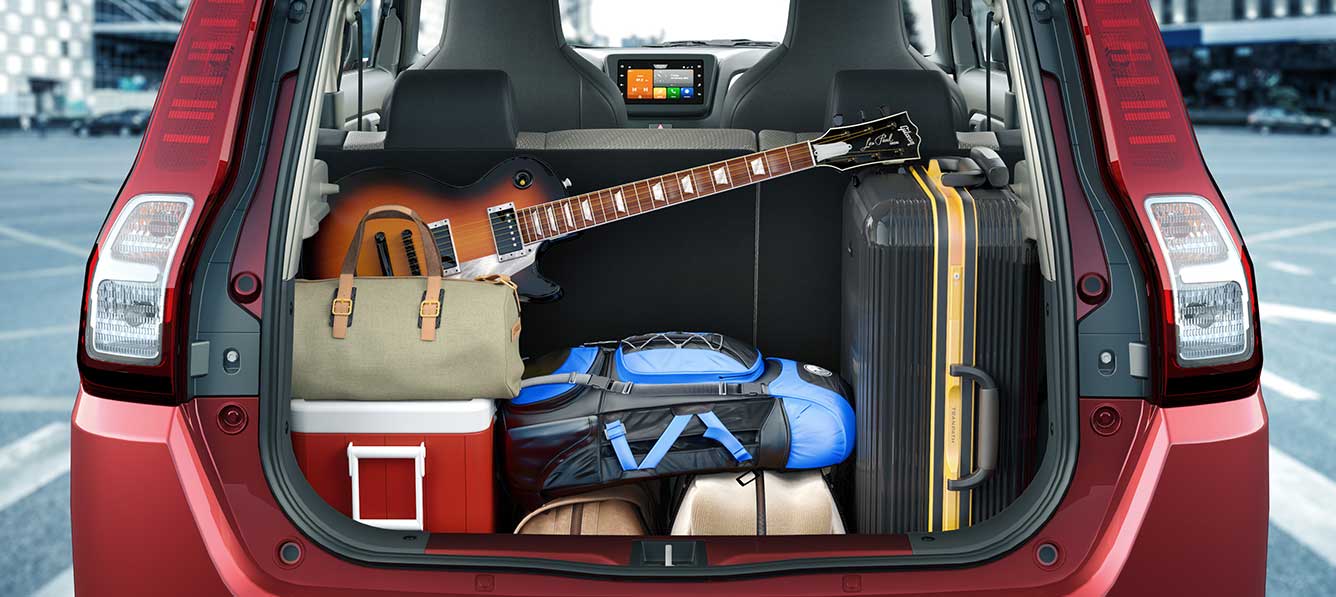

1600x600_05

Previous

Next

EXTERIOR VIEW

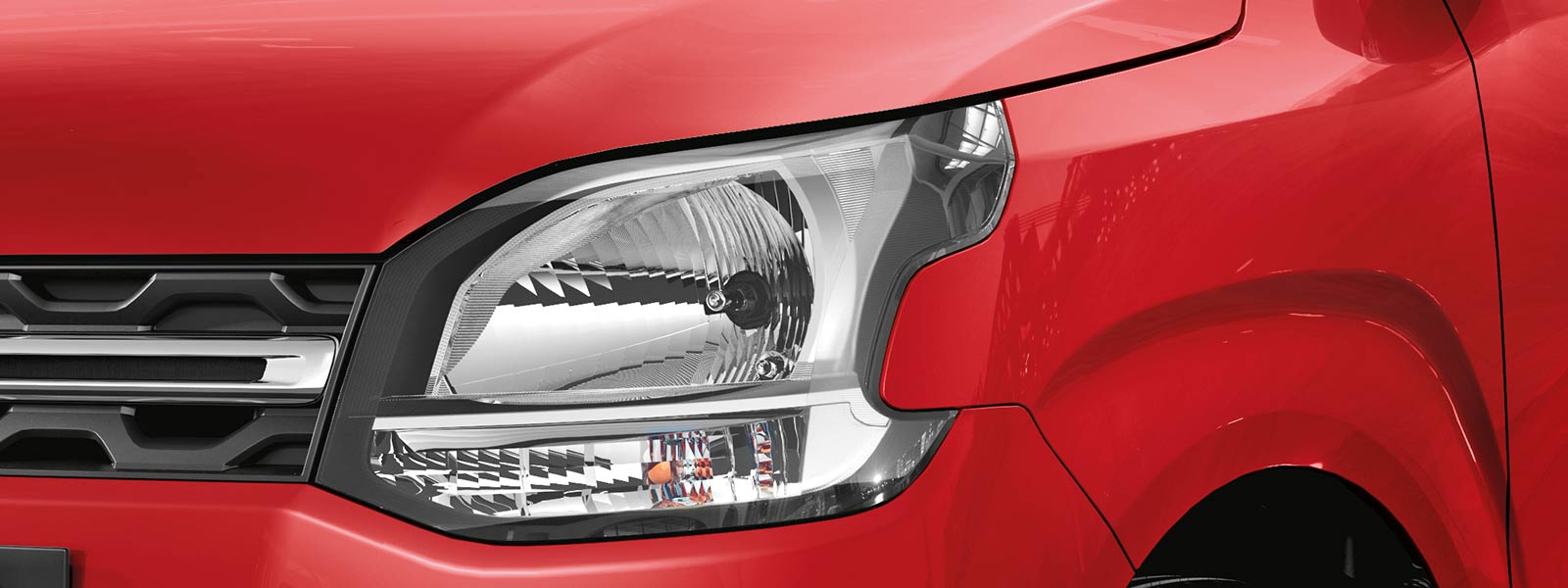

1600x600_04

1600x600_01 (1)

1600x600_03 (1)

1600x600_05 (2)

1600x600_01

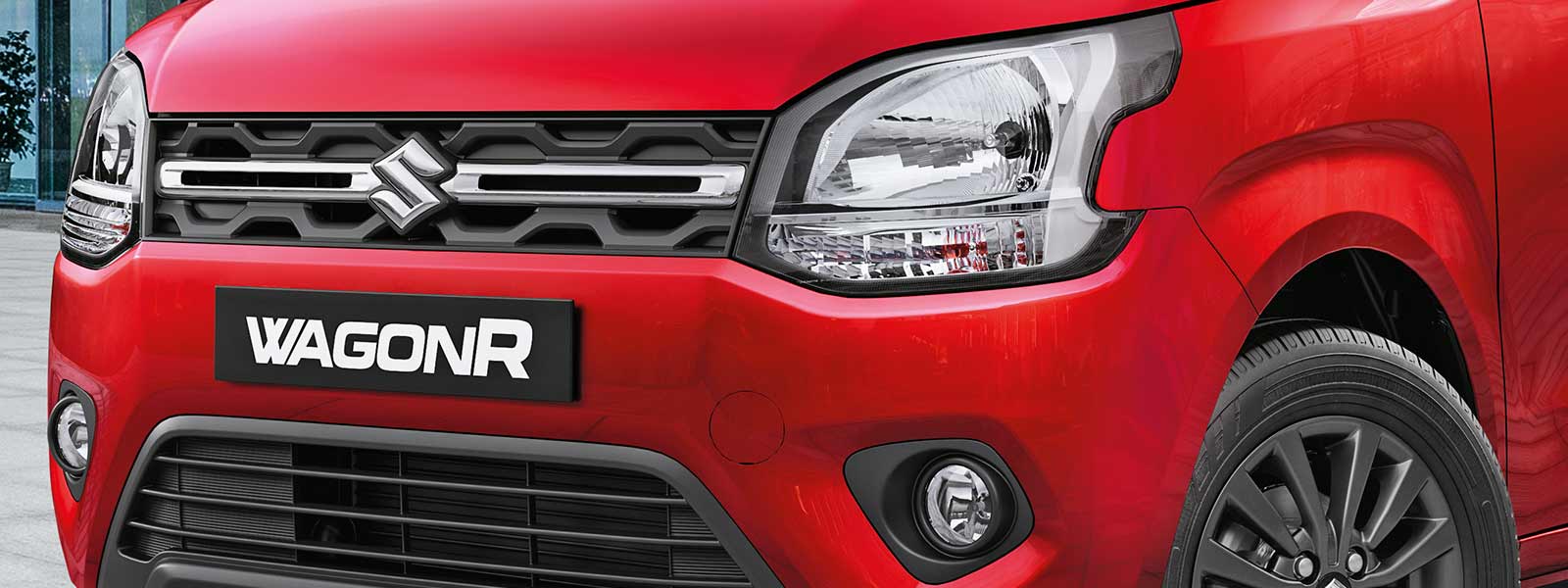

1600x600_02
