	Zeta MT/AT	Alpha MT/AT
Body Coloured Outside Door Handles

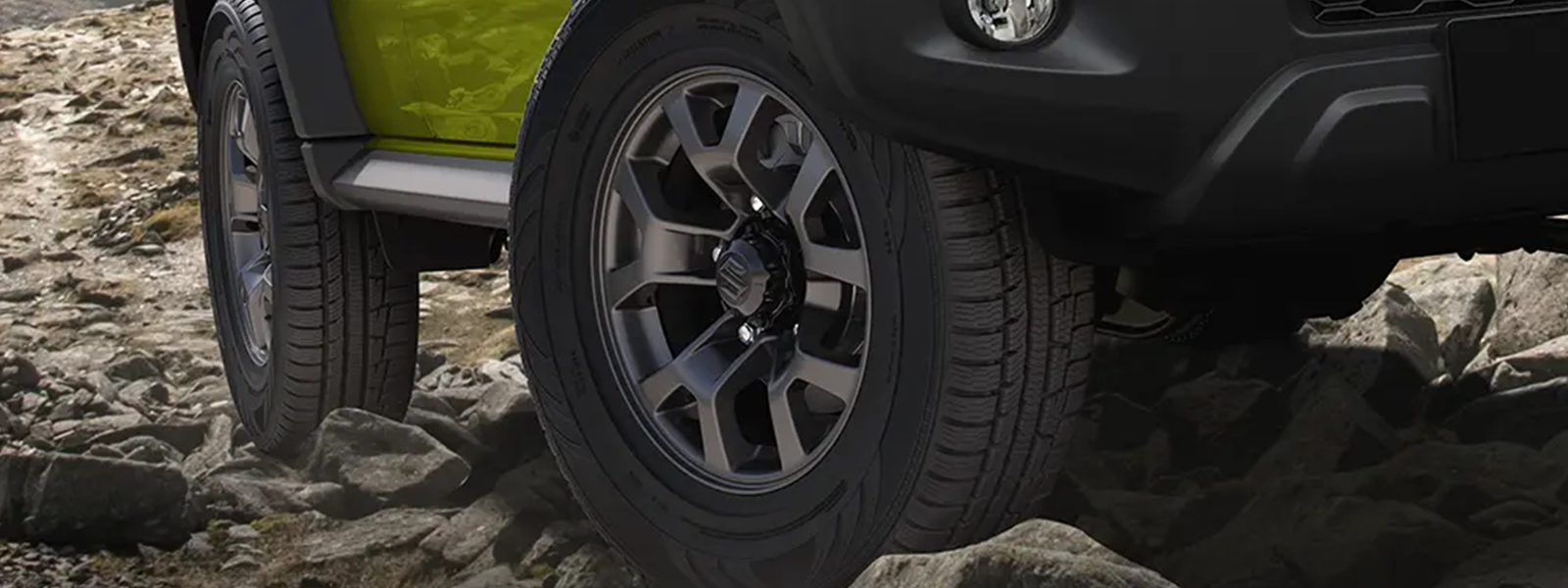

Wheels	Steel	Alloy
Hard Top

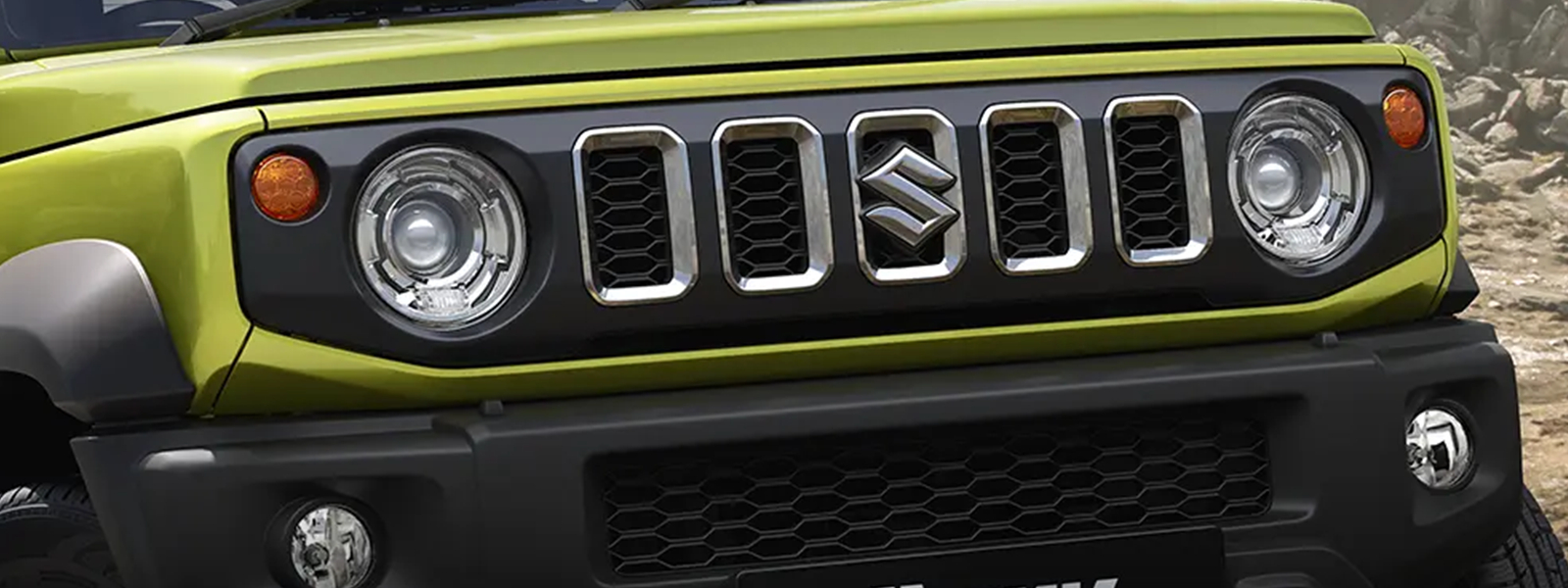

Gunmetal Grey Grille with Chrome Plating
Drip Rails
Trapezoidal Wheel Arch Extensions
Clamshell Bonnet

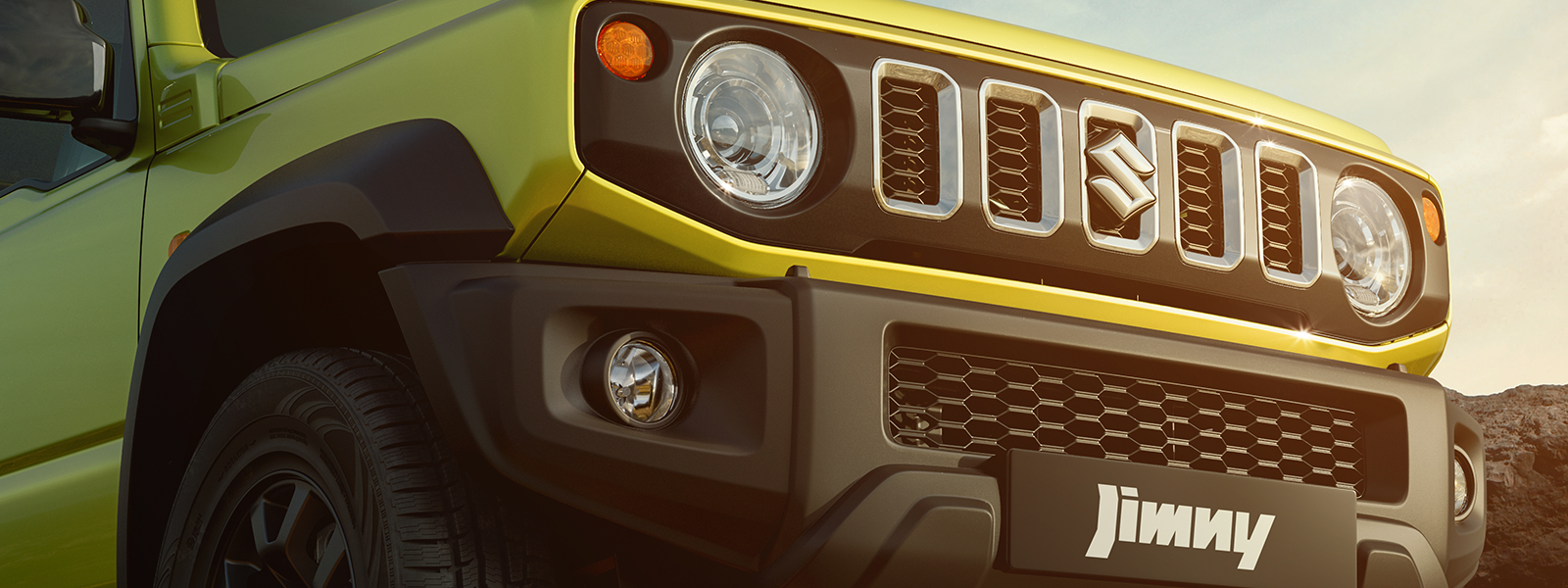

Lumber Black Scratch-resistant Bumpers

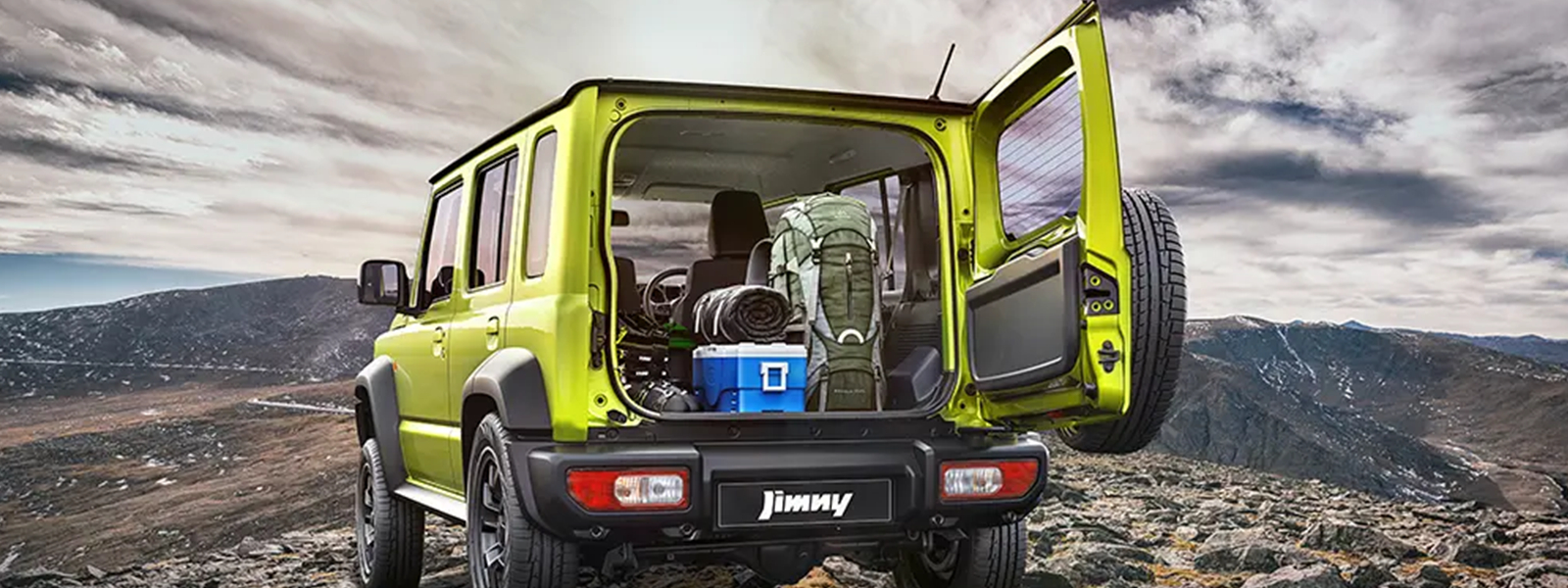

Tailgate Mounted Spare Wheel

Push Start/Stop
Cruise Control

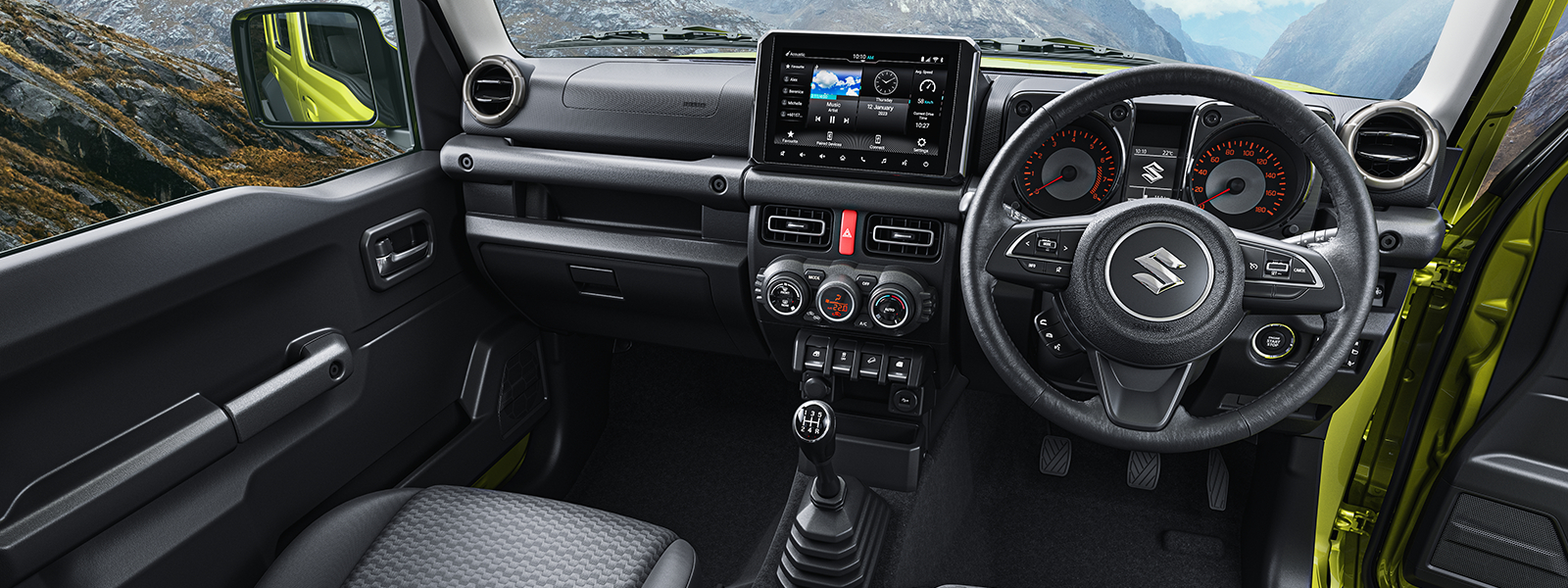

Leather Wrapped Steering Wheel
Climate Control	Manual	Auto
Driver Side Power Window Auto Up/Down with Pinch Guard

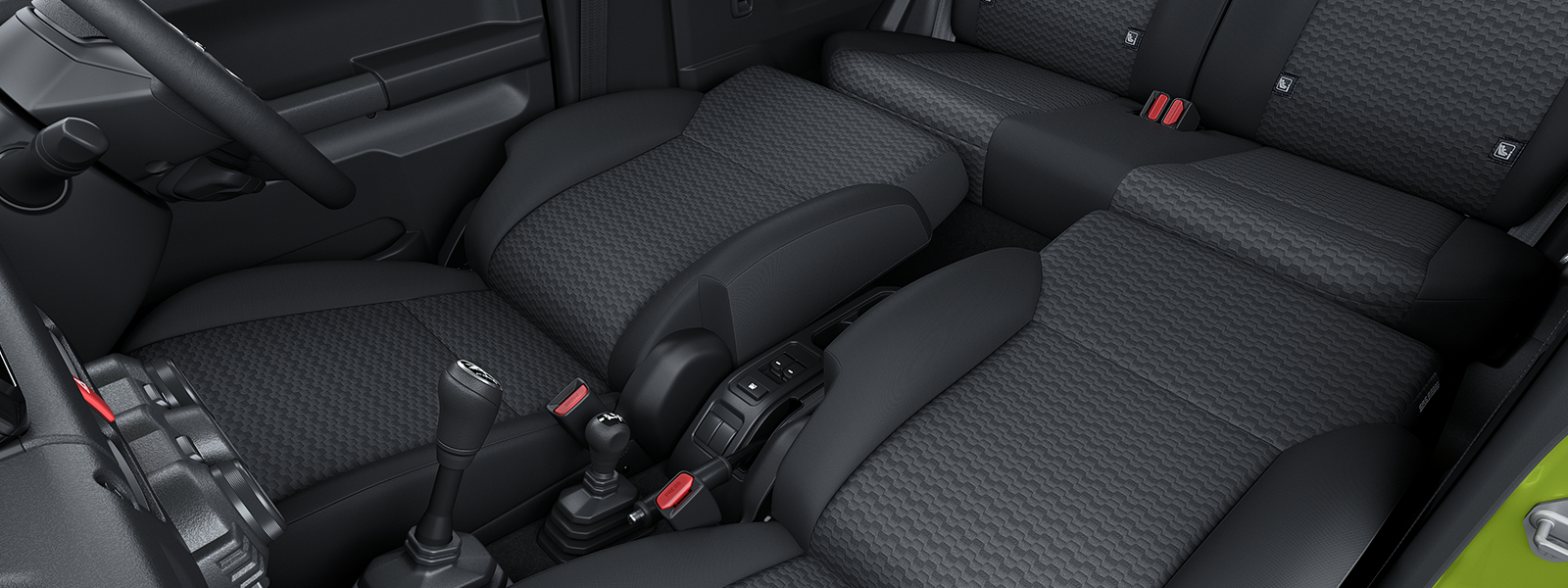

Near Flat Reclinable Front Seats
Scratch-resistant & Stain Removable IP Finish
Ride-in Assist Grip Passenger Side
Ride-in Assist Grip Rear x 2
Tilt Power Steering
All Power Windows

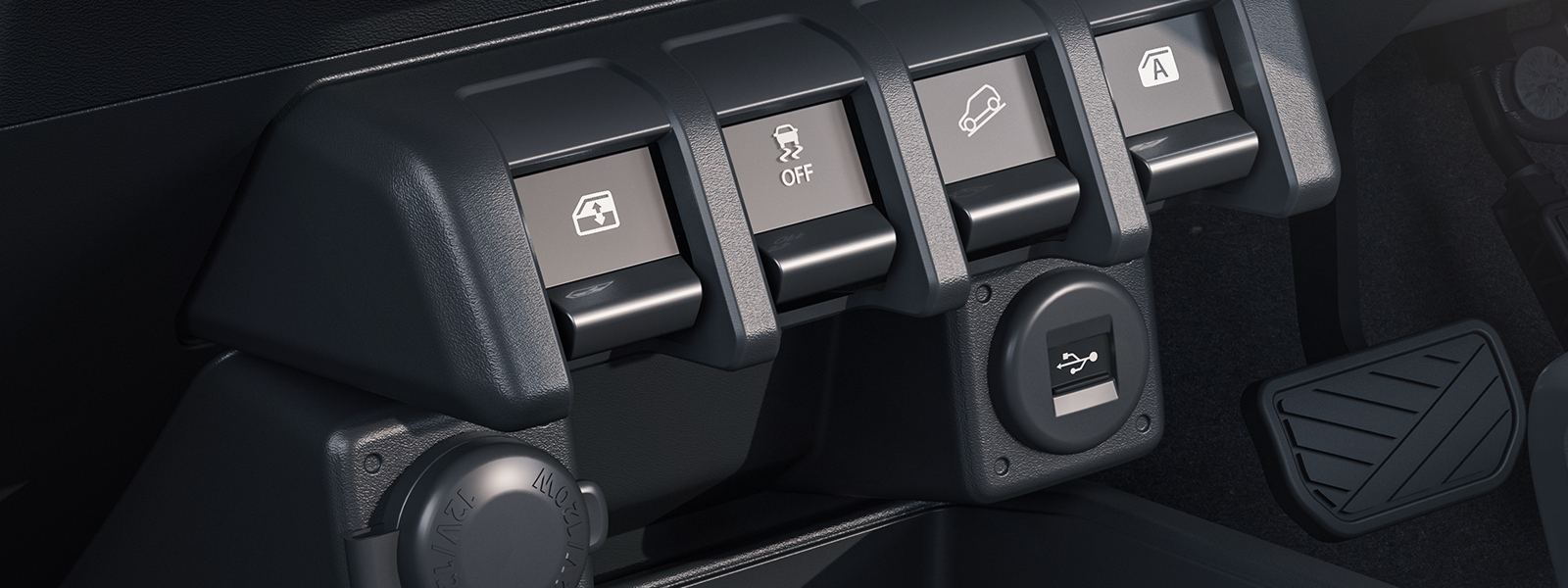

Rear Accessory Socket
Utility Screw Holes (for Accessory)
Luggage Hook Screw Holes (for Accessory)
Central Door Locking (including Back Door)
Digital Clock
Steering Mounted Controls
Tachometer
Center Console Tray
Floor Console Tray
MID (TFT Colour Display)
Front & Rear Seat Adjustable Headrest
Hairline Finished Meter Cluster
Front & Rear Welded Tow Hooks

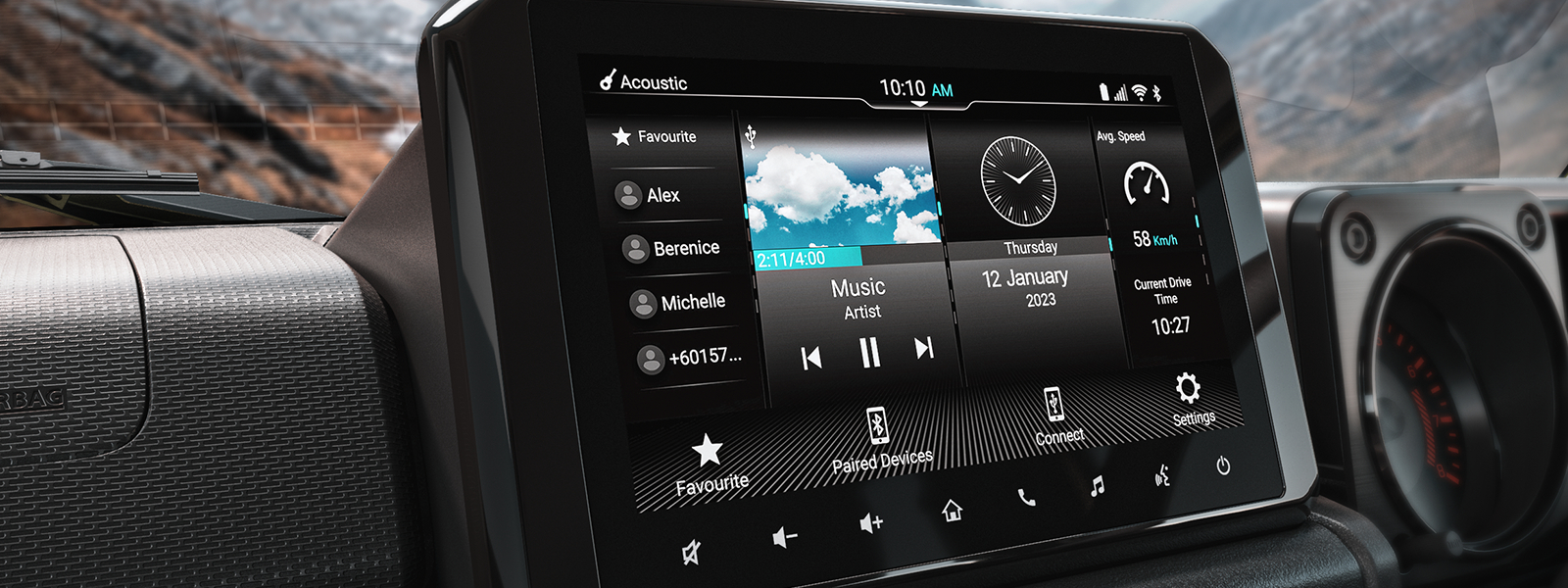

SmartPlay Pro+		22.86 cm Touchscreen
Surround Sense Powered by ARKAMYS
SmartPlay Pro	17.78 cm Touchscreen
Android Auto & Apple CarPlay (Wireless)
Speakers	4	4

Side & Curtain Airbags
Dual Front Airbags
Brake Limited Slip Differential
ABS
EBD
ESP
Hill Hold Control
Hill Descent Control
Brake Assist Function
Rear View Camera
Side Impact Door Beams
Seatbelt Pre-tensioner/Force Limiter
ISOFIX Child Seat Anchorages
3-point Emergency Locking Retractor Seatbelts
Engine Immobilizer

Length (mm)* (with Spare Tyre)	3985
Width (mm)*	1645
Height (mm)*	1720
Wheelbase (mm)*	2590
Ground Clearance (mm)*	210
Seating Capacity*	4
Tread (Front)(mm)*	1395
Tread (Rear)(mm)*	1405
Boot Space (L)*	208
Boot Space (L) (Rear Seat Folded)*	332
Minimum Turning Radius (m)*	5.7
*These figures are under homologation testing and subject to variation.

Fuel Type	Petrol
Engine Type	K15B with Idle Start Stop
Engine Capacity (cc)*	1462
Max Power*	77.1kW@6000 rpm [104.8Ps@6000 rpm]
Max Torque (Nm@rpm)*	134.2@4000
Number of Cylinders	4
Power Steering Type	Electric
Fuel Tank Capacity (L)*	40
Number of Valves*	16
Bore x Stroke (mm)*	74.0 x 85.0
Compression Ratio*	10
Fuel Distribution	Multipoint Injection
*These figures are under homologation testing and subject to variation.

Fuel Type	5MT/4AT
Drive System	ALLGRIP PRO (with Low Range Transfer Gear)

Chassis Type	Ladder Frame
Approach Angle (Degree)	36
Departure Angle (Degree)	50
Ramp Breakover Angle (Degree)	24
Front Brakes	Ventilated Disc
Rear Brakes	Drum
Front Suspension	3-link Rigid Axle Type with Coil Spring
Rear Suspension	3-link Rigid Axle Type with Coil Spring
Tyre Size (Alloy & Steel)	195/80 R15
