Ertiga

	Zxi MT	ZXi AT	ZXi CNG	ZXi+ MT	ZXi+ AT

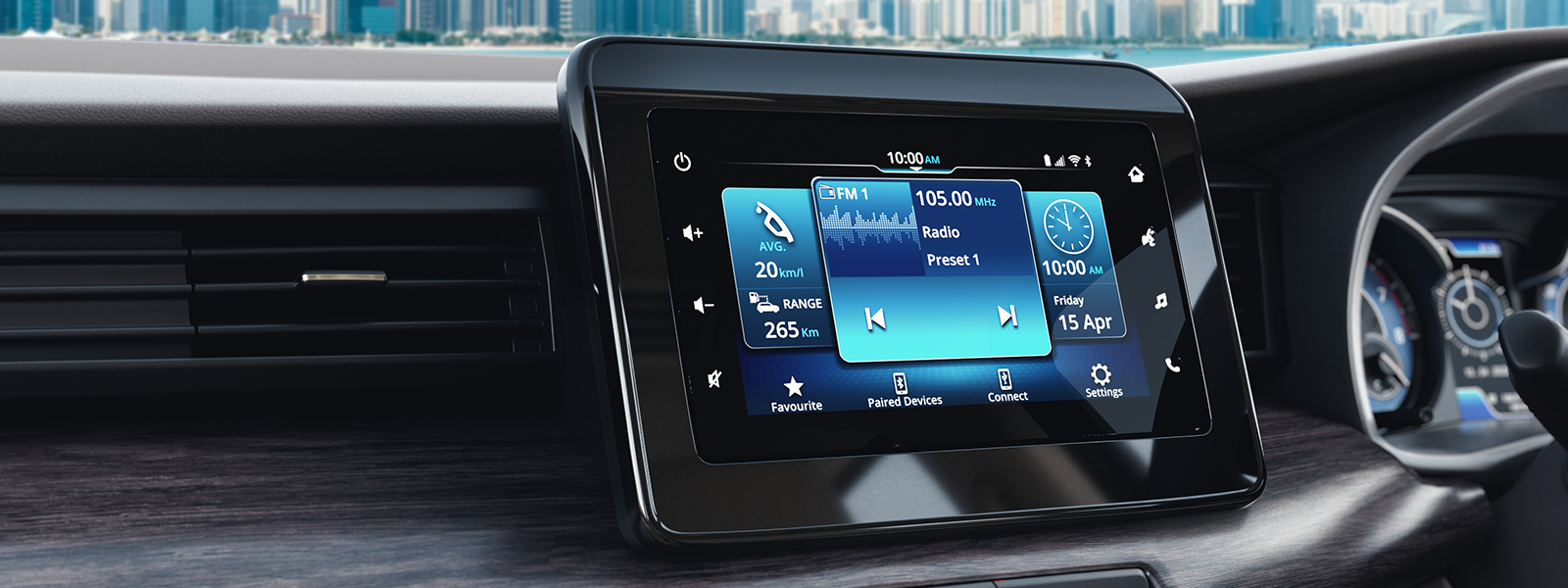

17.78cm SmartPlay Pro Touch Screen Infotainment System
17.78cm SmartPlay Studio Touch Screen Infotainment System
Android Auto* & Apple Can Play~
Audio System with Electrostatic Touch Buttons
Bluetooth Connectivity
Speakers(4)
Tweeters(2)
USB and AUX Connectivity	USB Only	USB Only	USB Only	USB Only	USB Only
Steering Mounted Audio Control
Steering Mounted Calling Control
*Android Auto extends the Android Platform into the car in a way that’s purpose-built for driving.
~Apple and iphone are trademarks of Apple Inc.

	VXi MT	VXi AT	VXi CNG	Zxi MT	ZXi AT	ZXi CNG	ZXi+ MT	ZXi+ AT
Engine Push Start/Stop with Smart Key
Manual AC (Front)
Auto AC (Front)

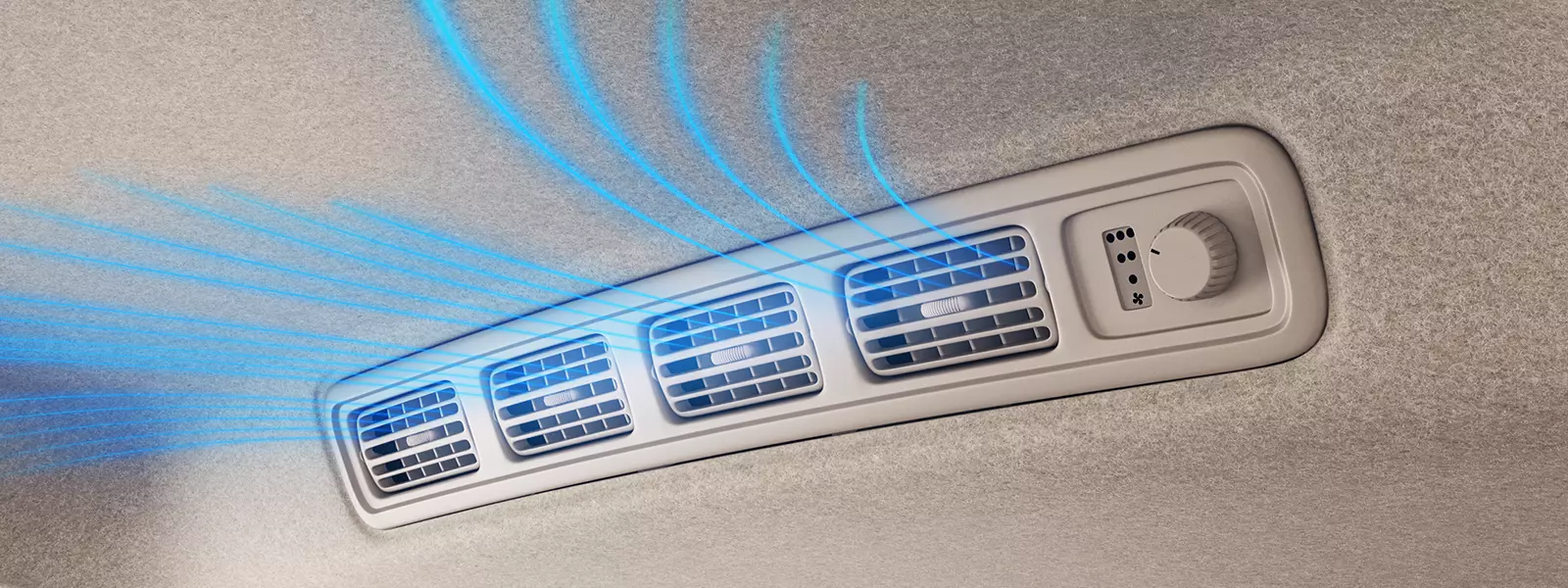

2nd Row Roof Mounted AC with 3 Stage Speed Control
Air Cooled Twin Cup Holders (Console)
Rear Defogger
Remote Keyless Entry				(Smart Key)	(Smart Key)	(Smart Key)	(Smart Key)	(Smart Key)
Power Socket (12V) Front Row with Smartphone Storage Space
Power Socket (12V) 2nd Row
2nd Row Smart Phone Storage Space
Power Socket (12V) 3rd Row
Power Windows (Fr/Rr) with Dr. Side Auto Down Functions
Auto Window Up (Dr. Side with anti-pinch)
Day & Night Adjustable IRVM
Power & Tilt Steering
Electrically Adjustable ORVMs
Electrically Foldable ORVMs
Retractable ORVMs (Key Operated)
Bottle Holders (in each row)
Coin Holder & Ticket Holder (Driver Side)
Cabin Lamp (Fr.+Rr.)
Cruise Control
Paddle Shifters	(AT)	(AT)	(AT)	(AT)	(AT)	(AT)	(AT)	(AT)
Foot Rest
Auto Headlamps with follow me Home/Lead me on vechile feature

	LXi MT	VXi MT	VXi AT	VXi CNG	Zxi MT	ZXi AT	ZXi CNG	ZXi+ MT	ZXi+ AT

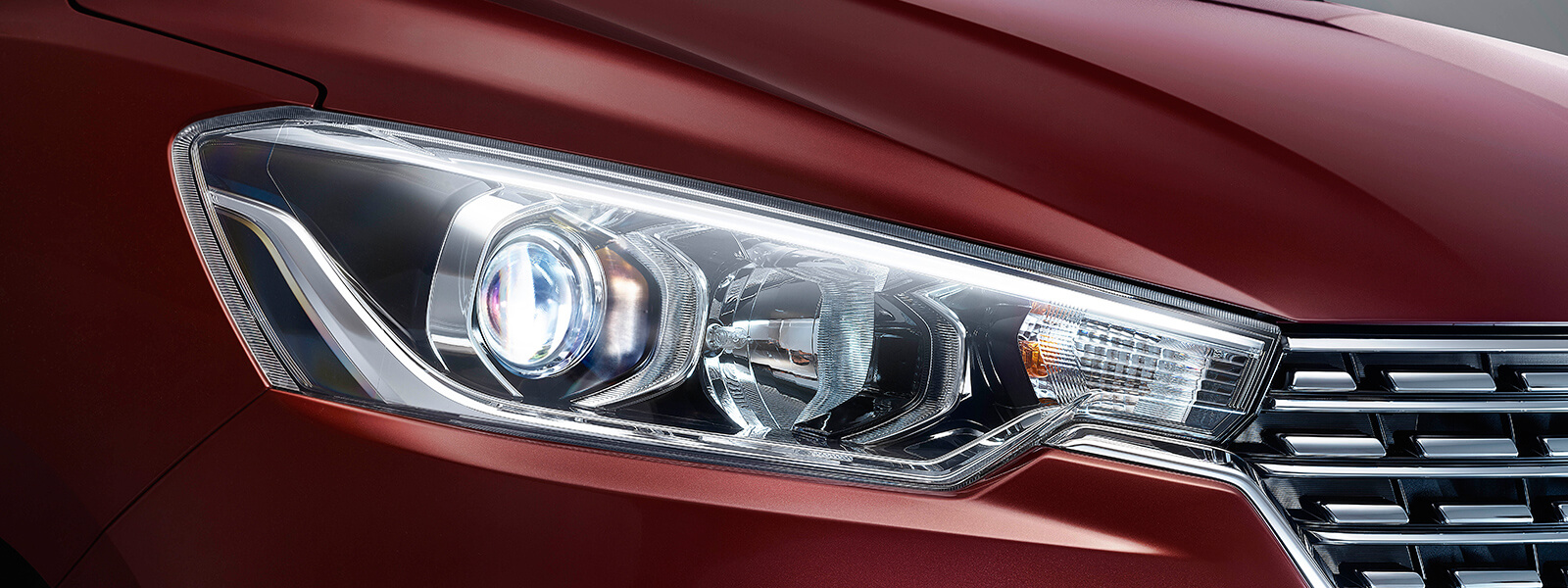

Projector Headlamps (Halogen)

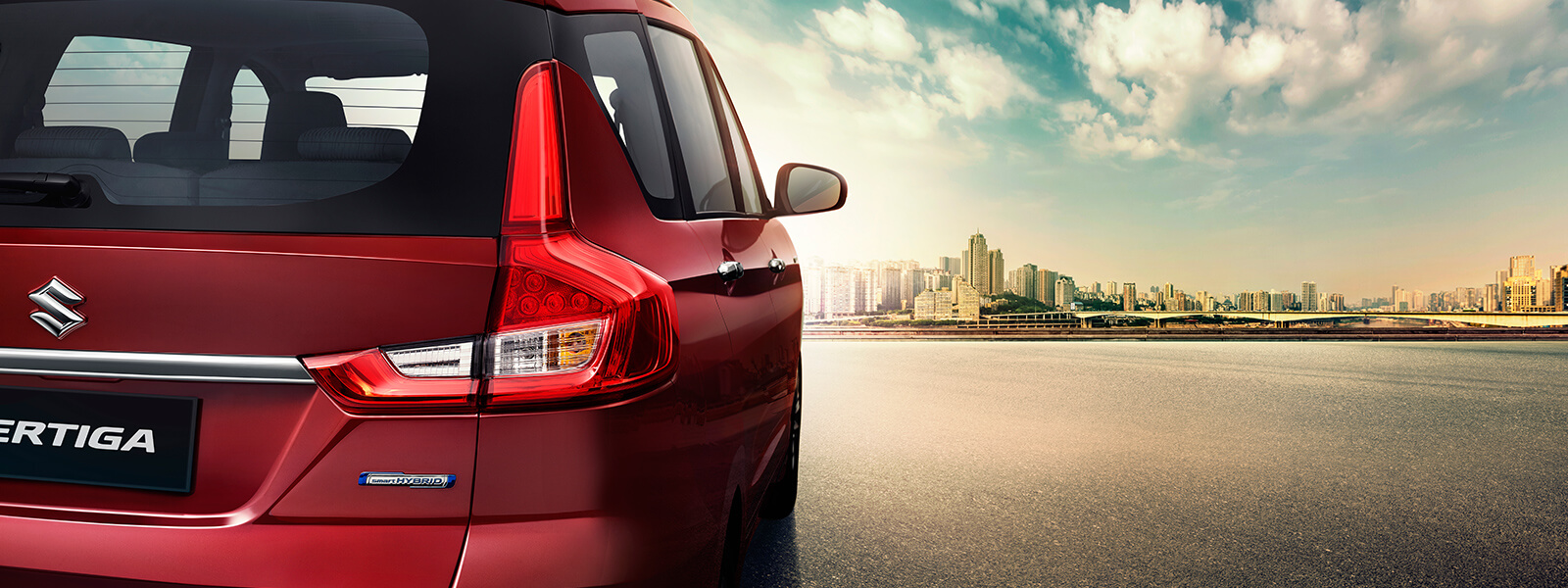

3D Origami Style LED Tail Lamps

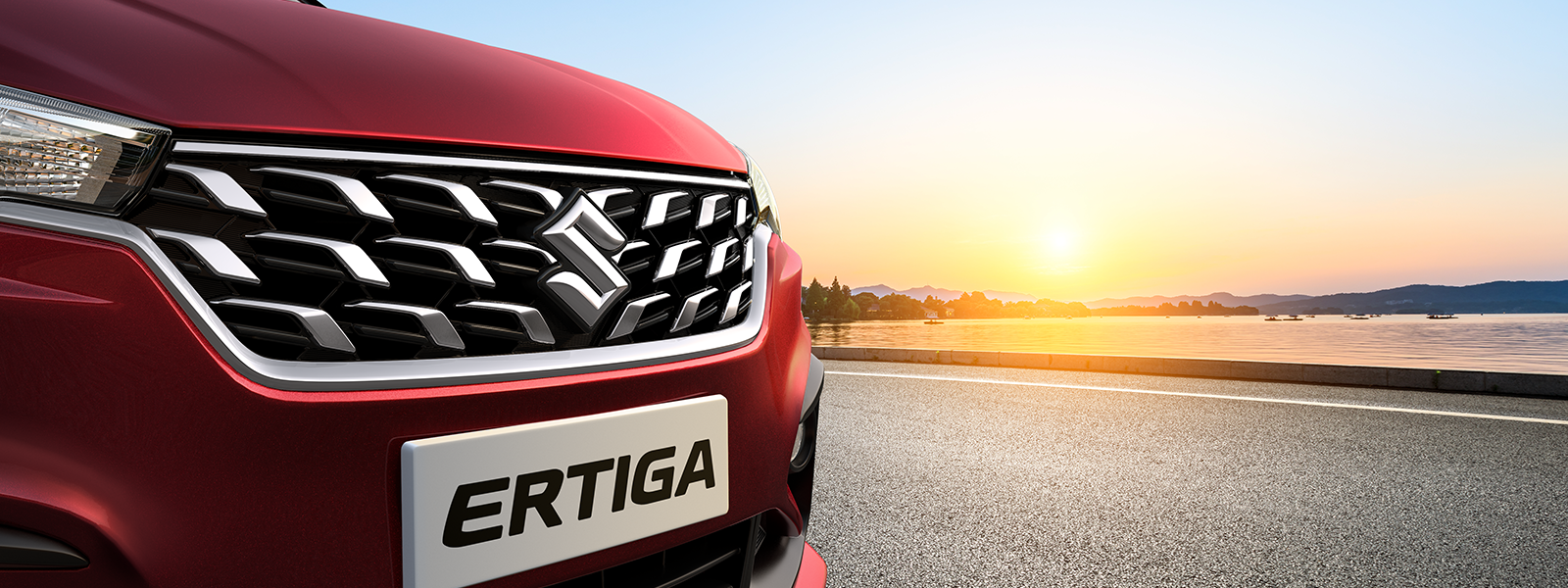

New Dynamic Chrome Winged Front Grille	Painted	Chrome	Chrome	Chrome	Chrome	Chrome	Chrome	Chrome	Chrome
Floating Type Roof Design
Full Wheel Caps

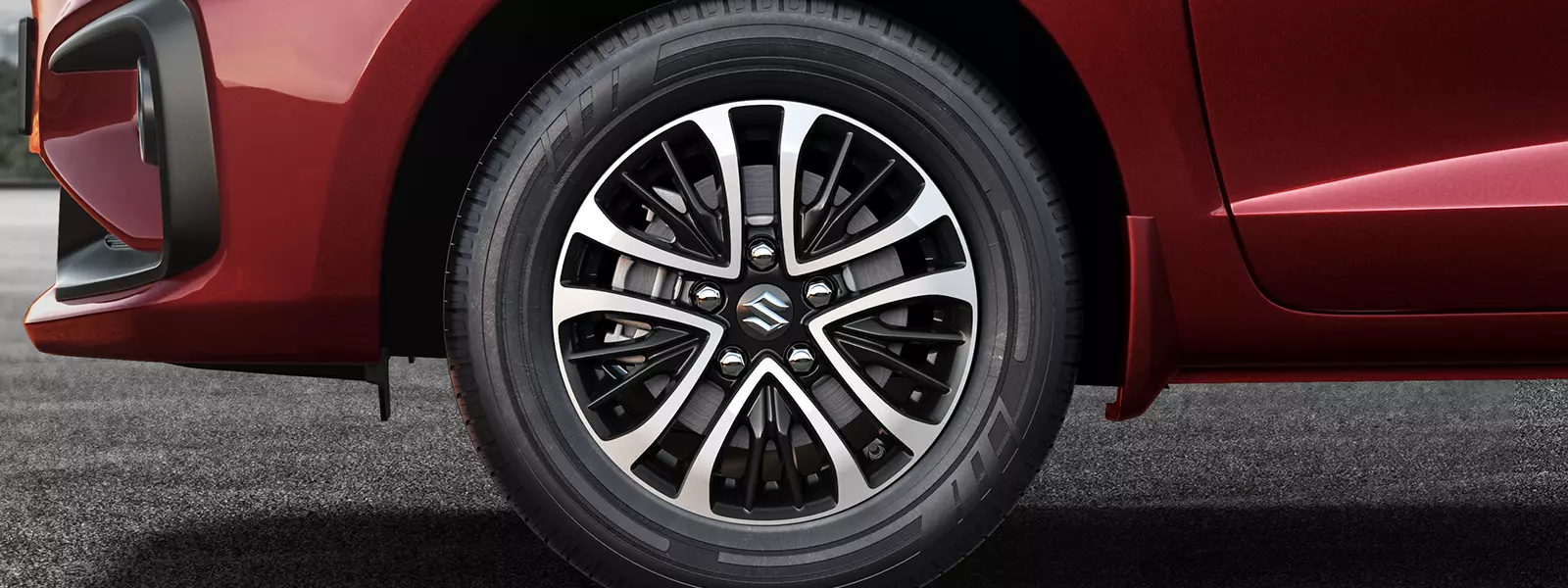

Machined Two-tone Alloy Wheels
Turn Signal Lamp Integrated in ORVMs
New Back Door Garnish with Chrome Insert
Rear Wiper & Washer
Body Coloured Door Handles
Chrome Plated Door Handles
Body Coloured ORVMs

	VXi MT	VXi AT	VXi CNG	Zxi MT	ZXi AT	ZXi CNG	ZXi+ MT	ZXi+ AT
MID With Coloured TFT
Tachometer
Gear Shift Indicator	(MT Only)	(MT Only)	(MT Only)	(MT Only)	(MT Only)	(MT Only)	(MT Only)	(MT Only)
Digital Clock
Outside Temperature Gauge
Fuel Consumption (Instantaneous and Avg)^#
Dedicated CNG Fuel Gauge	(CNG)	(CNG)	(CNG)	(CNG)	(CNG)	(CNG)
Total CNG Mode Time	(CNG)	(CNG)	(CNG)	(CNG)	(CNG)	(CNG)
Distance to Empty^#
Headlamp On Warning
Door Ajar Warning Lamp
#Applecarplay

	VXi MT	VXi AT	VXi CNG	Zxi MT	ZXi AT	ZXi CNG

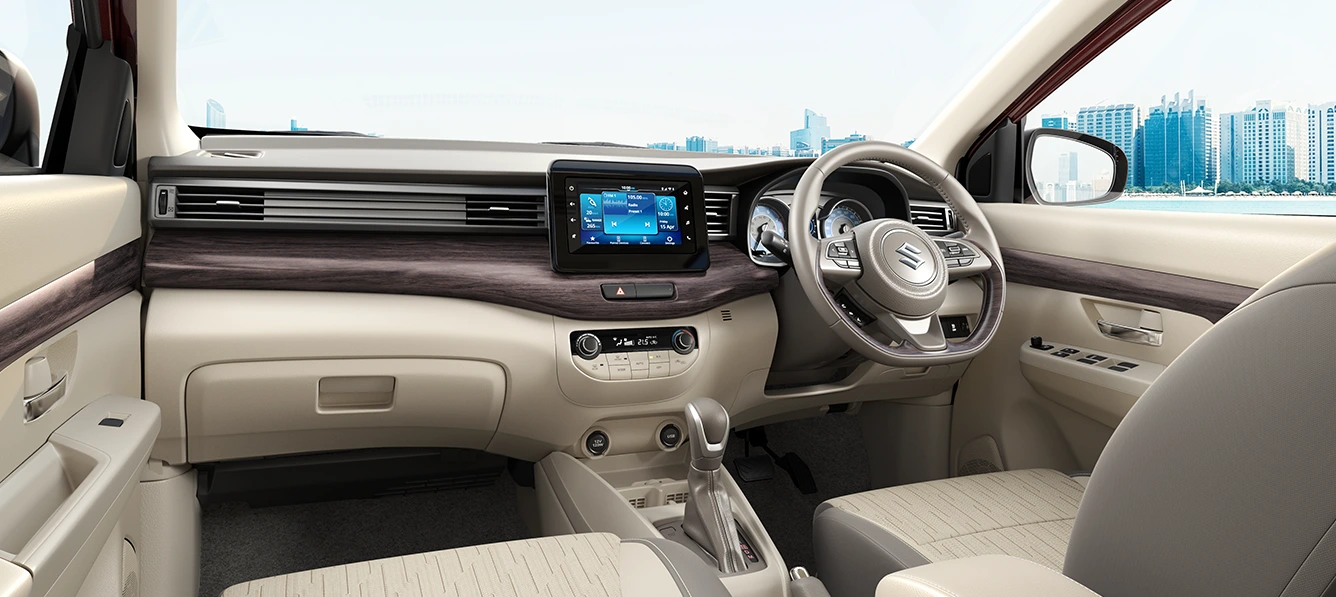

Sculpted Dashboard with Metallic Teak – Wooden Finish
Metallic Teak-Wooden Finish on Door Trims (Fr.)
Premium Dual Tone Interiors
Height Adjustable Driver Seat
2nd Row Seats 60:40 Split with one touch Recline & slide
3rd Row Seats 50:50 Split with Recline function
Flexible luggage space with Flat Fold
Plush Dual-Tone Seat Fabric
Fr. Seat Back Pockets	Co-driver	Co-driver	Co-driver
Sliding Armrest with Utility Box (Front Row)
2nd Row Armrest
Leather Wrapped Steering Wheel with Metallic Teak-Wooden Finish
Adjustable Headrest (All Rows)
Split Type Luggage Board	(Expect CNG)	(Expect CNG)	(Expect CNG)	(Expect CNG)	(Expect CNG)	(Expect CNG)
Driver Side Sunvisor with Ticket Holder
Passenger Side Sunvisor with Vanity Mirror
Dazzle Chrome Tipped Parking Brake Lever
Gear Shift Knob with Dazzle Chrome Finish

	VXi MT	VXi AT	VXi CNG	Zxi MT	ZXi AT	ZXi CNG
Suzuki Heartect Platform

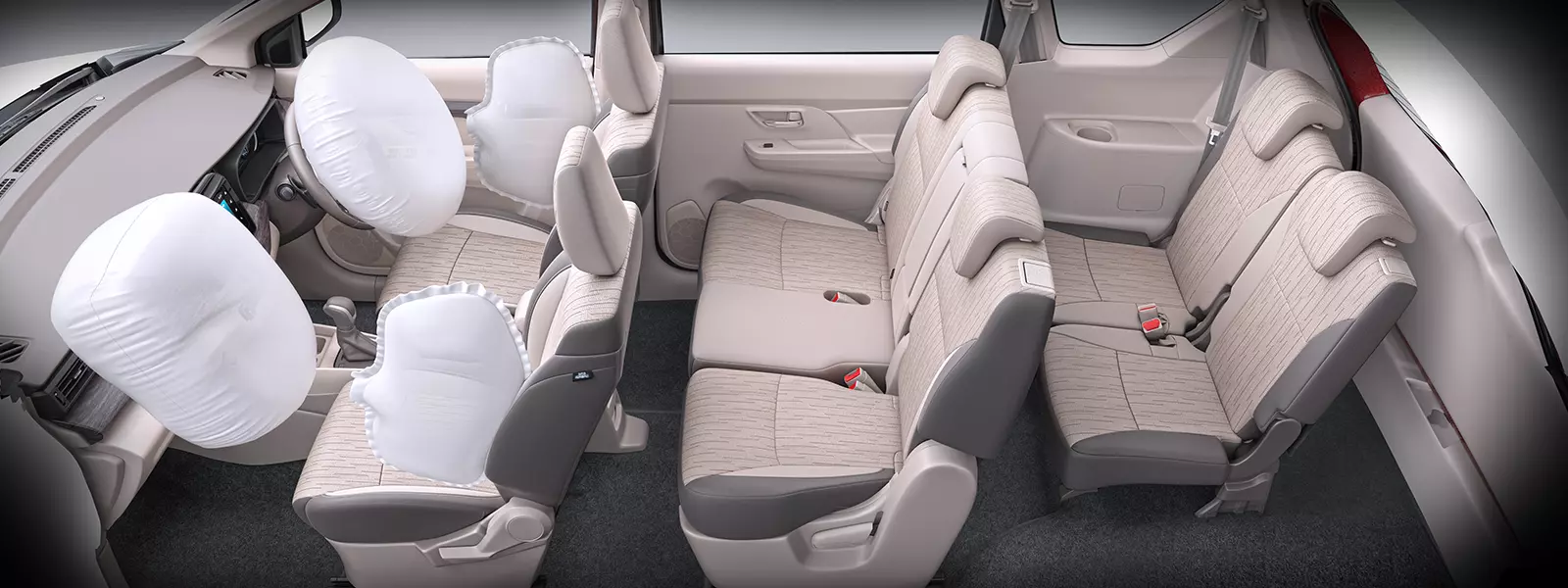

Dual Front Airbags
Fr.Seat Side Airbags
ABS with EBD and Brake Assist
Engine Immobilizer
ESP	(AT Only)	(AT Only)	(AT Only)	(AT Only)	(AT Only)	(AT Only)
Hill Hold	(AT Only)	(AT Only)	(AT Only)	(AT Only)	(AT Only)	(AT Only)
ISOFIX Child Seat Anchorages (2nd Row Seats)
Front Seat Belts with Pre-tensioner & Force Limiters (Dr.+Co-Dr.)
Seat Belt Reminder Lamp with Buzzer (Dr.+Co-Dr.)
Front Seat Belt Height Adjuster
High Speed Alert System
Speed Sensitive Auto Door Lock
Security Alarm
Rear Parking Sensors
Rear Parking Camera
Central Locking

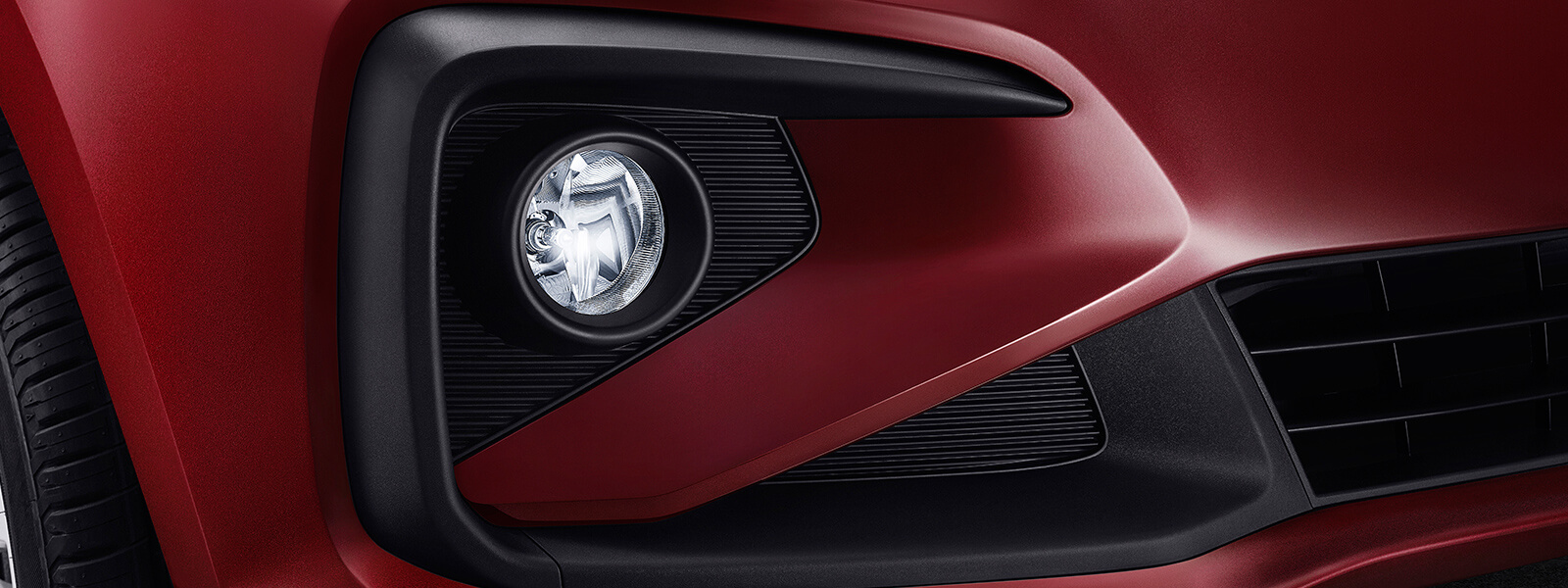

Front fog Lamps

	Zxi MT	ZXi AT	ZXi CNG	ZXi+ MT	ZXi+ AT
Safety and Security
Emergency Alerts
Breakdown notification
Stolen Vehicle Notification and Tracking
Tow Away Alert and Tracking
Geo-Fence
Time Fence
Valet Alert
Trips and Driving Behaviour
Trip Summary
Driving Behaviour
Share Trip History
Area Guidance Around Destination
Vehicle location Sharing
Alerts and Notification
Overspeed
Seatbelt
AC Idling
Trip (Start &End)
Low Fuel & Low Range^#
Dashboard View
Remote functions
Door Lock/Cancel Lock
Hazard Light ON/OFF
Headlight OFF
Alarm
Immobilizer Request
Battery Health
Smartwatch Connectivity
Suzuki Connect skill for Amazon, Alexa****
Remote Ac	(AT)	(AT)	(AT)	(AT)	(AT)
#Applecarplay
****Amazon, Alexa and all related marks are trademarks of Amazon.com, Inc. or its affiliates

	LXi MT	VXi MT	VXi AT	ZXi MT	ZXi AT	ZXi + MT	ZXi + AT
Type	K15C SMART HYBRID	K15C SMART HYBRID	K15C SMART HYBRID	K15C SMART HYBRID	K15C SMART HYBRID	K15C SMART HYBRID	K15C SMART HYBRID
Capacity (cc)	1462	1462	1462	1462	1462	1462	1462
Compression Ratio	12 ± 0.3	12 ± 0.3	12 ± 0.3	12 ± 0.3	12 ± 0.3	12 ± 0.3	12 ± 0.3
Bore X Stroke (mm)	74.0 x 85.0	74.0 x 85.0	74.0 x 85.0	74.0 x 85.0	74.0 x 85.0	74.0 x 85.0	74.0 x 85.0
Power (KW@RPM)	75.8@6000	75.8@6000	75.8@6000	75.8@6000	75.8@6000	75.8@6000	75.8@6000
Torque(Nm@RPM)	136.8@4400	136.8@4400	136.8@4400	136.8@4400	136.8@4400	136.8@4400	136.8@4400
Emission Type	BS VI	BS VI	BS VI	BS VI	BS VI	BS VI	BS VI
Fuel Tank Capacity (L)	45	45	45	45	45	45	45

	LXi MT	VXi MT	VXi AT	ZXi MT	ZXi AT	ZXi + MT	ZXi + AT
Length (mm)	4395	4395	4395	4395	4395	4395	4395
Width (mm)	1735	1735	1735	1735	1735	1735	1735
Height (mm)(Unladen)	1690	1690	1690	1690	1690	1690	1690
Wheelbase (mm)	2740	2740	2740	2740	2740	2740	2740
Turning Radius (mm)	5.2	5.2	5.2	5.2	5.2	5.2	5.2
Seating capacity	7	7	7	7	7	7	7

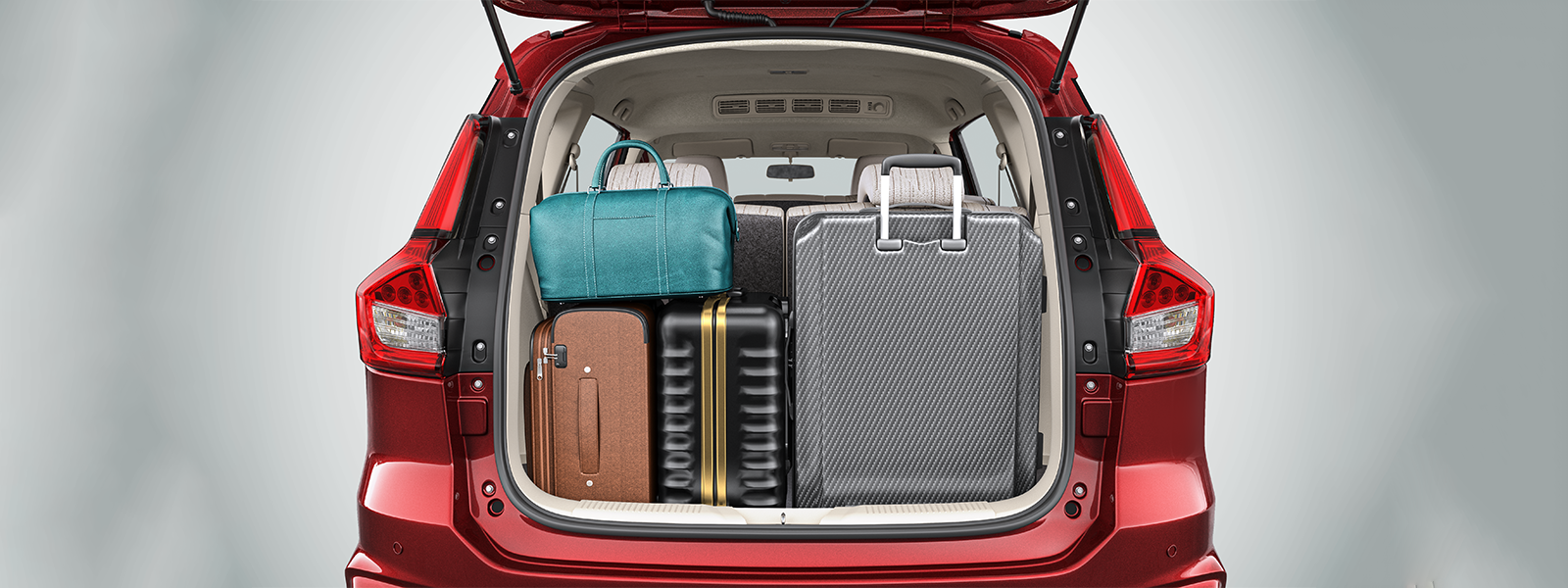

Boot Space^ (L)	209 (All 3 Rows Up), 550 (3rd Row Folded) & 803 (2nd Row and 3rd Row Folded)	209 (All 3 Rows Up), 550 (3rd Row Folded) & 803 (2nd Row and 3rd Row Folded)	209 (All 3 Rows Up), 550 (3rd Row Folded) & 803 (2nd Row and 3rd Row Folded)	209 (All 3 Rows Up), 550 (3rd Row Folded) & 803 (2nd Row and 3rd Row Folded)	209 (All 3 Rows Up), 550 (3rd Row Folded) & 803 (2nd Row and 3rd Row Folded)	209 (All 3 Rows Up), 550 (3rd Row Folded) & 803 (2nd Row and 3rd Row Folded)	209 (All 3 Rows Up), 550 (3rd Row Folded) & 803 (2nd Row and 3rd Row Folded)
^Boot space mentioned in inclusive of under luggage board space (VDA Method)

	LXi MT	VXi MT	VXi AT	ZXi MT	ZXi AT	ZXi + MT	ZXi + AT
Drive	2WD,FF	2WD,FF	2WD,FF	2WD,FF	2WD,FF	2WD,FF	2WD,FF
Transmission	5MT/6AT	5MT/6AT	5MT/6AT	5MT/6AT	5MT/6AT	5MT/6AT	5MT/6AT

	LXi MT	VXi MT	VXi AT	ZXi MT	ZXi AT	ZXi + MT	ZXi + AT
Front	Disc	Disc	Disc	Disc	Disc	Disc	Disc
Rear	Drum	Drum	Drum	Drum	Drum	Drum	Drum

	LXi MT	VXi MT	VXi AT	ZXi MT	ZXi AT	ZXi + MT	ZXi + AT
Front	Mac Pherson Strut & Coil Spring	Mac Pherson Strut & Coil Spring	Mac Pherson Strut & Coil Spring	Mac Pherson Strut & Coil Spring	Mac Pherson Strut & Coil Spring	Mac Pherson Strut & Coil Spring	Mac Pherson Strut & Coil Spring
Rear	Torsion Beam & Coil Spring	Torsion Beam & Coil Spring	Torsion Beam & Coil Spring	Torsion Beam & Coil Spring	Torsion Beam & Coil Spring	Torsion Beam & Coil Spring	Torsion Beam & Coil Spring
Tyre Size	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15

	LXi MT	VXi MT	VXi AT	ZXi MT	ZXi AT	ZXi + MT	ZXi + AT
Kerb Weight (kg)	1150-1205	1150-1205	1150-1205	1150-1205	1150-1205	1150-1205	1150-1205
Gross Vehicle Weight (kg)	1760(MT),1785(AT)	1760(MT),1785(AT)	1760(MT),1785(AT)	1760(MT),1785(AT)	1760(MT),1785(AT)	1760(MT),1785(AT)	1760(MT),1785(AT)
